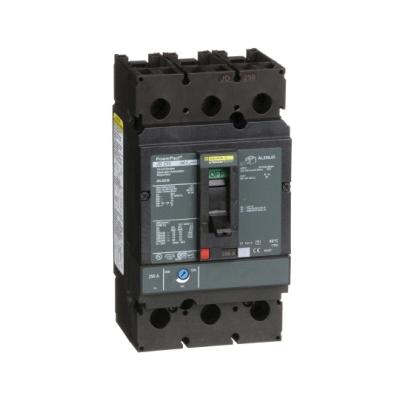

Square D JDL36250 Molded Case Circuit Breaker, 600 VAC, 250 Amp, 14 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D JDL36250 Molded Case Circuit Breaker, 600 VAC, 250 A, 14 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D JDL36250 Molded Case Circuit Breaker, 600 VAC, 250 A, 14 kA Interrupt, 3-Pole, Thermal Magnetic Trip JDL36250

PowerPacT J-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT J-Frame circuit breakers are available with either thermal magnetic or micrologic electronic trip protection units. This PowerPacT J-Frame circuit breaker provides thermal magnetic circuit protection with a breaking capacity of 14 kA at 600 VAC. All PowerPacT J-Frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT J circuit breakers are available in 2 and 3-pole unit mount and I-Line constructions. This breaker has lugs on both the line and load sides. This PowerPacT J, 250 A, 3 pole, circuit breaker has a breaking capacity of 14 kA at 600 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT J circuit breakers comply to UL, CSA, NOM and IEC standards and are CE marked.
Square D Molded Case Circuit Breaker, Model: PowerPacT, 250 A, 600 VAC, 50/60 Hz, 14 kA Interrupt Rating, 3 Poles, Lug Connection, J Frame, Thermal Magnetic Trip, 2500 A Magnetic Trip Range, IP40 Enclosure, Toggle Actuator, 3/0 AWG to 350 kcmil Wire, Unit Mounting, 28 to 158 deg F, 4.09 in Width, 7.52 in Height, Additional Information: 3.39 in D, <6561.68 ft Altitude

Actuator Type      :      Toggle
Additional Information      :      3.39 in D, <6561.68 ft Altitude
Amperage Rating      :      250 A
Connection Type      :      Lug
Enclosure Type      :      IP40
Frame Type      :      J
Frequency Rating      :      50/60 Hz
Height      :      7.52 in
Interrupt Rating      :      14 kA
Model      :      PowerPacT
Mounting Type      :      Unit
Number of Poles      :      3
Temperature Rating      :      28 to 158 deg F
Trip Range      :      2500 A Magnetic
Trip Type      :      Thermal Magnetic
Voltage Rating      :      600 VAC
Width      :      4.09 in
Wire Size      :      3/0 AWG to 350 kcmil
