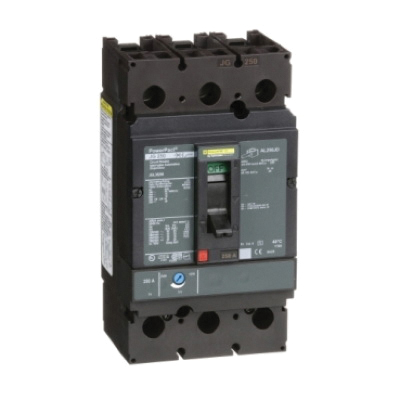

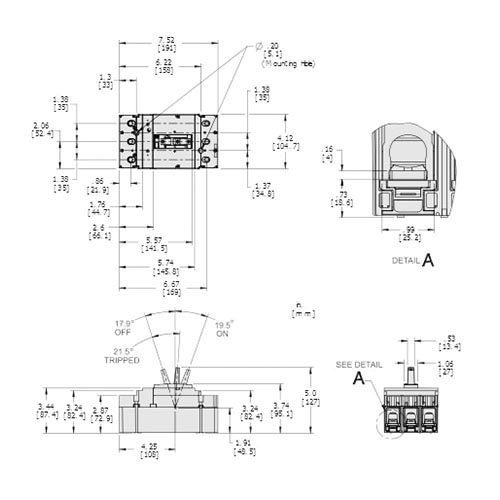

Square D JGL36250 Molded Case Circuit Breaker, 250/600 VAC/VDC, 250 Amp, 18 kA, 20 kA Interrupt, Three Pole

Square D PowerPact® Series JGL36250 Molded Case Circuit Breaker, 250/600 VAC/VDC, 250 A, 18 kA, 20 kA Interrupt, 3 -Pole

Square D PowerPact® Series JGL36250 Molded Case Circuit Breaker, 250/600 VAC/VDC, 250 A, 18 kA, 20 kA Interrupt, 3 -Pole JGL36250

The PowerPact®™ J-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. J-frame circuit breakers are available with either thermal magnetic or Micrologic™ electronic trip units. The amperage ratings of the thermal trip elements are calibrated at 104 deg F (40 deg C) free air ambient temperature. Per the National Electric Code® (NEC®) and the Canadian Electrical Code, standard circuit breakers may only be applied continuously at up to 80% of their rating. This PowerPact® J, circuit breaker and is three-pole and has a breaking capacity of 18 kA at 600 VAC and has a rated current of 250 A. This ia a unit mount breaker and complies to UL listed, IEC, CCC, CE and CSA standards. With a magnetic hold current of 1250 A and a magnetic tripping current of 2500 to 2500 A. Dimensions for this product are 7.52 in (height), 4.12 in (width), 5 in (depth) with an ambient temperature rating of 40 deg C.
Square D Molded Case Circuit Breaker, Series: PowerPact® Series, 250 A, 250/600 VAC/VDC, 50/60 Hz, Interrupt Rating: 18 kA, 20 kA, Number of Poles: 3, Connection Type: Lug, Frame Type: J, Thermal Magnetic Trip, 2500 A Trip, IP40 Enclosure, Toggle Actuator, 3/0 AWG to 350 kcmil Wire, Unit Mounting, 28 to 158 deg F, 4.09 in W, 3.39 in L, 7.52 in H

Actuator Type      :      Toggle
Amperage Rating      :      250 A
Connection Type      :      Lug
Enclosure Type      :      IP40
Frame Type      :      J
Frequency Rating      :      50/60 Hz
Height      :      7.52 in
Interrupt Rating      :      18 kA, 20 kA
Length      :      3.39 in
Mounting Type      :      Unit
Number of Poles      :      3
Series      :      PowerPact® Series
Temperature Rating      :      28 to 158 deg F
Trip Range      :      2500 A
Trip Type      :      Thermal Magnetic
Voltage Rating      :      250/600 VAC/VDC
Width      :      4.09 in
Wire Size      :      3/0 AWG to 350 kcmil
