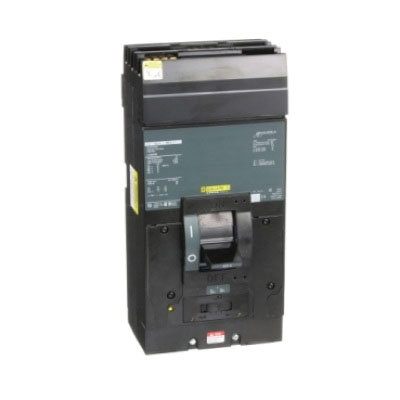

Square D LA36400 Molded Case Circuit Breaker, 600 VAC, 400 Amp, 22 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D™ brand I-Line® circuit breaker power distribution panelboards are for use on AC or DC systems. The panels, labeled cULus (compliance to UL and CSA standards certified by UL) are also Underwriters Laboratories® listed. I-Line® circuit breaker panelboards are available as 400 to 1200 A main lugs only and 100 to 1200 A main circuit breakers. I-Line® circuit breakers, with their exclusive bus connection design, provide superior reliability and performance advantages. A wide variety of accessories are available for field or factory installation of I-Line® panelboards. This I-Line®, 3P, circuit breaker has a 300 A rated current. This breaker has a breaking capacity of 22 kA at 600 VAC operation voltage. This breaker has a thermal magnetic trip technology. The dimensions are 11 in (height), 6 in (width), 5.84 in (depth).
Square D Molded Case Circuit Breaker, Series: LA Series, 400 A, 600 VAC, Interrupt Rating: 22 kA, Number of Poles: 3, Connection Type: I-Line, Load Lug, Frame Type: LA, Thermal Magnetic Trip, 4000 A Trip, 1 AWG to 250 kcmil, 1 AWG to 600 kcmil Wire, 6 in W, 5.84 in L, 11 in H

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_LA36400_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_LA36400_Instruction_Installation_Manual.pdf
• Owners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_LA36400_Owners_User_Manual.pdf
