Square D LDL36400U31X LDL36400U31X

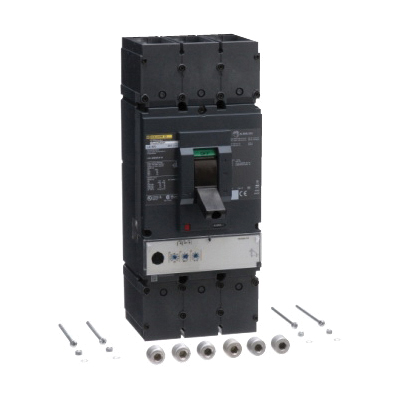

Square D LDL36400U31X Molded Case Circuit Breaker, 600 VAC, 400 Amp, 14 kA Interrupt, Three Pole

Square D LDL36400U31X Molded Case Circuit Breaker, 600 VAC, 400 A, 14 kA Interrupt, 3-Pole

Square D LDL36400U31X Molded Case Circuit Breaker, 600 VAC, 400 A, 14 kA Interrupt, 3-Pole LDL36400U31X

PowerPacT L-frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT L-frame circuit breakers are available with electronic trip units. This circuit breaker provides Micrologic standard with a 3.3 trip unit and an LI function. All PowerPacT L-frame circuit breakers are equipped with dual-break rotating contacts that reduce the amount of peak current during a short circuit fault. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT L circuit breakers are available in 3 and 4-pole unit mount, I-Line and draw out constructions. This unit has lugs on both the line and load sides. This PowerPacT L, 400 A, 3 pole, circuit breaker has an interrupting rating of 14 kA at 600 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT L circuit breakers comply to UL, CSA, NOM and IEC standards and are CE marked.
Square D Molded Case Circuit Breaker, Model: PowerPacT, 400 A, 600 VAC, 50/60 Hz, 14 kA Interrupt Rating, 3 Poles, Lug Connection, L Frame, Electronic, Standard, Micrologic 3.3, LI Trip, IP40 Enclosure, Toggle Actuator, 2/0 AWG to 500 kcmil Wire, Unit Mounting, 28 to 158 deg F, 5.51 in Width, 13.39 in Height, Black, Additional Information: 4.33 in D, <6561.68 ft Altitude

Actuator Type      :      Toggle
Additional Information      :      4.33 in D, <6561.68 ft Altitude
Amperage Rating      :      400 A
Color      :      Black
Connection Type      :      Lug
Enclosure Type      :      IP40
Frame Type      :      L
Frequency Rating      :      50/60 Hz
Height      :      13.39 in
Interrupt Rating      :      14 kA
Model      :      PowerPacT
Mounting Type      :      Unit
Number of Poles      :      3
Temperature Rating      :      28 to 158 deg F
Trip Type      :      Electronic, Standard, Micrologic 3.3, LI
Voltage Rating      :      600 VAC
Width      :      5.51 in
Wire Size      :      2/0 AWG to 500 kcmil
  • Designed to protect electrical systems from damage caused by overloads and short circuits for distribution systems
  • Micrologic 3.3 standard trip unit offers adjustable protection for system flexibility and communication capability
  • With Micrologic trip unit L-frame circuit breaker provides access to measurements of all the main electrical parameters
  • Micrologic trip unit lets operators optimize the management of electrical installations using networking open protocols
