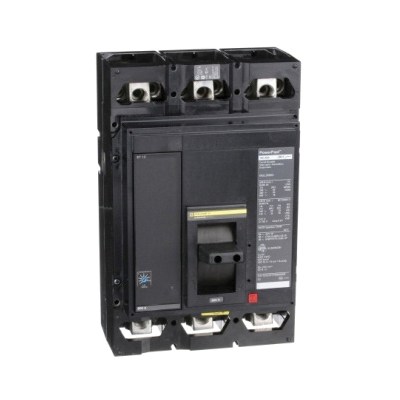

Square D MGL36800 Molded Case Circuit Breaker, 600 VAC, 800 Amp, 18 kA Interrupt, Three Pole, Electronic, ET 1.0 Trip

Square D MGL36800 Molded Case Circuit Breaker, 600 VAC, 800 A, 18 kA Interrupt, 3-Pole, Electronic, ET 1.0 Trip

Square D MGL36800 Molded Case Circuit Breaker, 600 VAC, 800 A, 18 kA Interrupt, 3-Pole, Electronic, ET 1.0 Trip MGL36800

PowerPacT M-Frame circuit breakers are designed to protect electrical systems from damage caused by overloads and short circuits. PowerPacT M-Frame circuit breakers have either a fixed long time electronic trip unit or an adjustable amperage version. This circuit breaker has an electronic trip unit, ET 1.0. All PowerPacT circuit breakers have an integral push-to-trip button in the cover to manually trip the circuit breaker. PowerPacT M circuit breakers are available in 2 and 3-pole unit mount or I-Line construction. This unit has lugs on both the line and load sides. This PowerPacT M, 800 A, 3 pole, circuit breaker has an interrupting rating of 18 kA at 600 VAC. This circuit breaker has a continuous current rating of 80%. PowerPacT M circuit breakers comply to UL, CSA, NOM and IEC standards and are CE marked.
Square D Molded Case Circuit Breaker, Model: PowerPacT, 800 A, 600 VAC, 50/60 Hz, 18 kA Interrupt Rating, 3 Poles, Lug Connection, M Frame, Electronic, ET 1.0 Trip, IP40 Enclosure, Handle Actuator, 3/0 AWG to 500 kcmil Wire, Unit Mounting, -13 to 158 deg F, 8.27 in Width, 12.86 in Height, Black, Additional Information: 8.05 in D, <6561.68 ft Altitude

Actuator Type      :      Handle
Additional Information      :      8.05 in D, <6561.68 ft Altitude
Amperage Rating      :      800 A
Color      :      Black
Connection Type      :      Lug
Enclosure Type      :      IP40
Frame Type      :      M
Frequency Rating      :      50/60 Hz
Height      :      12.86 in
Interrupt Rating      :      18 kA
Model      :      PowerPacT
Mounting Type      :      Unit
Number of Poles      :      3
Temperature Rating      :      -13 to 158 deg F
Trip Type      :      Electronic, ET 1.0
Voltage Rating      :      600 VAC
Width      :      8.27 in
Wire Size      :      3/0 AWG to 500 kcmil
