Square D QBL22200 QBL22200

Square D QBL22200 Molded Case Circuit Breaker, 240 VAC, 200 Amp, 10 kA Interrupt, Double Pole, Thermal Magnetic Trip

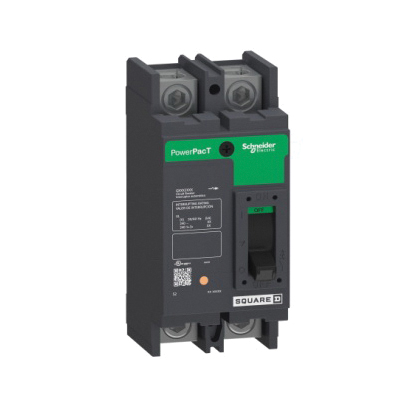

Square D PowerPacT™ QBL22200 Circuit Breaker, 240 VAC, 200 A, 10 kA Interrupt, 2-Pole, Thermal Magnetic Trip

Square D PowerPacT™ QBL22200 Circuit Breaker, 240 VAC, 200 A, 10 kA Interrupt, 2-Pole, Thermal Magnetic Trip QBL22200

The PowerPacT™ Q-frame line of circuit breakers includes QB molded case circuit breakers and QB automatic switches. They are rated 240 VAC, 250 A max and are available in lug or bus connected unit mount constructions or I-Line® group mounted construction.
Square D Circuit Breaker, 200 A, 240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 2 Poles, Q-Frame Frame, Thermal Magnetic Trip, Lug Terminal, Operating Handle Actuator, 4 AWG to 300 kcmil Wire, Unit Mounting, 104 to 158 deg F, 3.93 in Width, 2.97 in Length, 6.47 in Height

Actuator Type      :      Operating Handle
Amperage Rating      :      200 A
Frame Type      :      Q-Frame
Frequency Rating      :      50/60 Hz
Height      :      6.47 in
Interrupt Rating      :      10 kA
Length      :      2.97 in
Mounting Type      :      Unit
Number of Poles      :      2
Temperature Rating      :      104 to 158 deg F
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      240 VAC
Width      :      3.93 in
Wire Size      :      4 AWG to 300 kcmil
  • PowerPacT™ Q 200A, 240VAC two-pole unit mount molded case circuit breaker
  • Designed for overcurrent protection and switching on AC systems
  • PowerPacT™ Q circuit breakers contain thermal (overload) and magnetic (short circuit) sensing elements in each pole
  • Breaker has interrupting ratings (AIR) of 10 kA 240 VAC and has 80 % rating
  • Environmental performance of the product
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QBL22200_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QBL22200_Instruction_Installation_Manual.pdf
  • pdfOwners/User Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QBL22200_Owners_User_Manual.pdf
  • pdfRoHS https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QBL22200_RoHS.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QBL22200_Specification_Sheet.pdf
