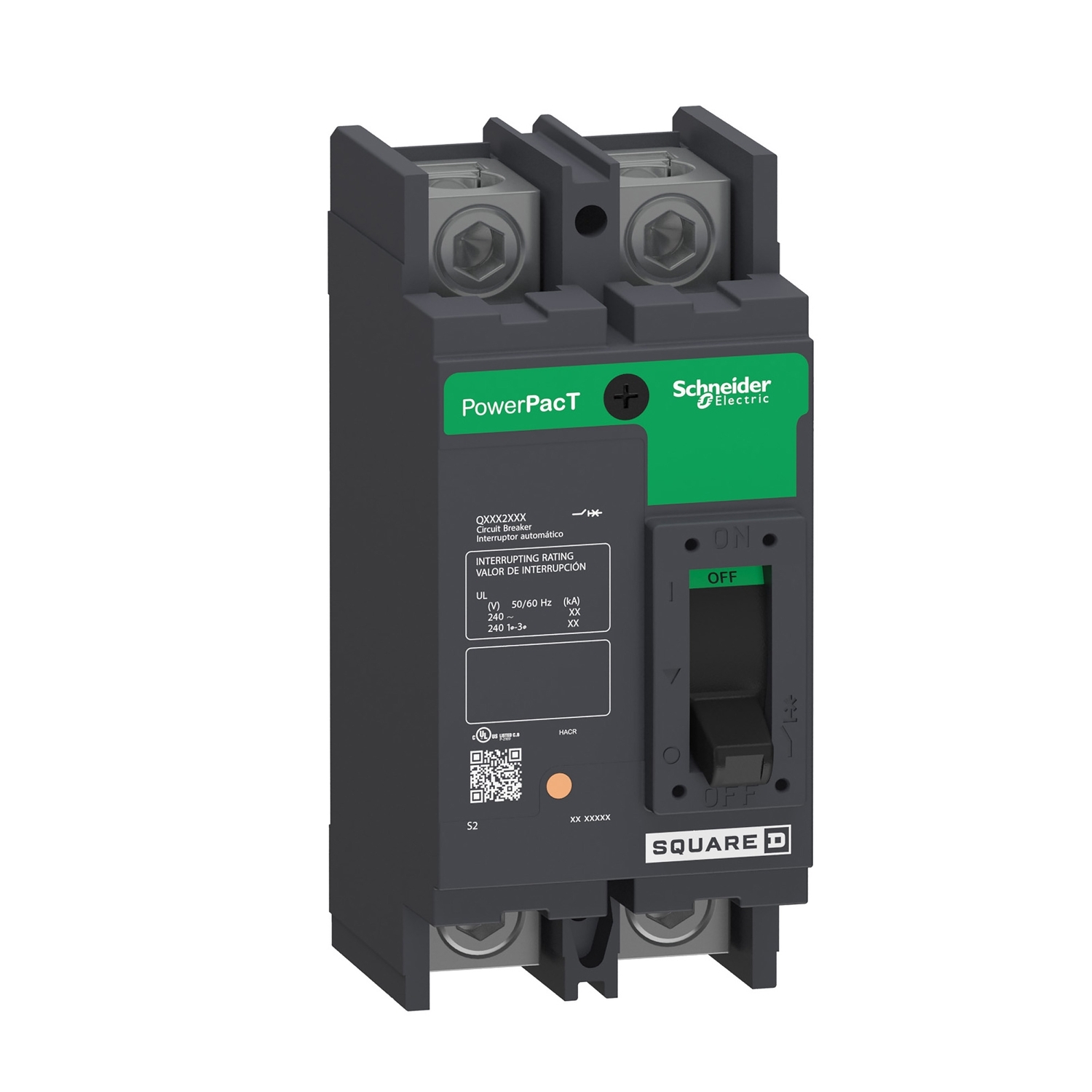

Square D QDL22100 Molded Case Circuit Breaker, 240 VAC, 100 Amp, 25 kA Interrupt, Double Pole, Thermal Magnetic Trip

Square D QDL22100 Molded Case Circuit Breaker, 240 VAC, 100 A, 25 kA Interrupt, 2-Pole, Thermal Magnetic Trip

Square D QDL22100 Molded Case Circuit Breaker, 240 VAC, 100 A, 25 kA Interrupt, 2-Pole, Thermal Magnetic Trip QDL22100

Square D Molded Case Circuit Breaker, 100 A, 240 VAC, 50/60 Hz, 25 kA Interrupt Rating, 2 Poles, 1 ph Phase, Q Frame, Thermal Magnetic Trip, Lug Terminal, Toggle Actuator, 4 AWG to 300 kcmil Aluminum/Copper Wire, Free-Standing Mounting, 104 deg F, 4-1/2 in Width, 3.93 in Length, 6.47 in Height

Actuator Type      :      Toggle
Amperage Rating      :      100 A
Frame Type      :      Q
Frequency Rating      :      50/60 Hz
Height      :      6.47 in
Interrupt Rating      :      25 kA
Length      :      3.93 in
Mounting Type      :      Free-Standing
Number of Poles      :      2
Phase      :      1 ph
Temperature Rating      :      104 deg F
Terminal Type      :      Lug
Trip Type      :      Thermal Magnetic
Voltage Rating      :      240 VAC
Width      :      4-1/2 in
Wire Size      :      4 AWG to 300 kcmil Aluminum/Copper
