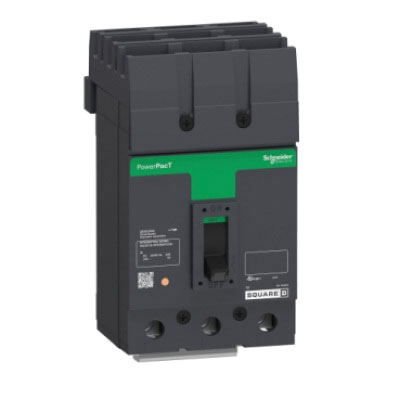

Square D QGA32200 Molded Case Circuit Breaker, 240 VAC, 200 Amp, 65 kA Interrupt, Three Pole

The PowerPact® Q-frame line of circuit breakers include QB, QD, QG and QJ molded case circuit breakers and QB automatic switches. They are rated 240 VAC, 250 A max. and are available in lug or bus-connected unit-mount constructions or I-Line® group-mounted construction. PowerPact® Q-frame circuit breakers are rated for 240 VAC (208Y/120 VAC for three-pole 100 kA) and are available with UL® Listed interruption ratings from 10 kA to 100 kA. Unit-mount circuit breakers are available with lugs on both ends for cabled applications or with mounting studs for bus-mounted applications. These circuit breakers may be mounted in individual enclosures, metering devices, panelboards or switchboards. The PowerPact® Q-frame circuit breaker is a direct replacement for the Q2 Series device. This PowerPact® Q, circuit breaker is a three-pole and has a rated current of 200 A. This breaker has a breaking capacity of 65 kA at 240 VAC and has a continuous current rating of 80 %. This I-Lineed breaker has a thermal magnetic trip unit technology with a magnetic hold current of 1200 A and a magnetic tripping current of 2400 A. Dimensions for this product are 6.47 in (height), 4.5 in (width), 3.93 in (depth).
Square D Molded Case Circuit Breaker, PowerPact® Series, 200 A, 240 VAC, 50/60 Hz, Interrupt Rating: 65 kA, Number of Poles: 3, Connection Type: Load Lug, Frame Type: Q, Thermal Magnetic Trip, 2400 A Trip, Bracket Mounting, 104 to 158 deg F, 4-1/2 in W, 3.93 in L, 6.47 in H

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QGA32200_Catalog.pdf

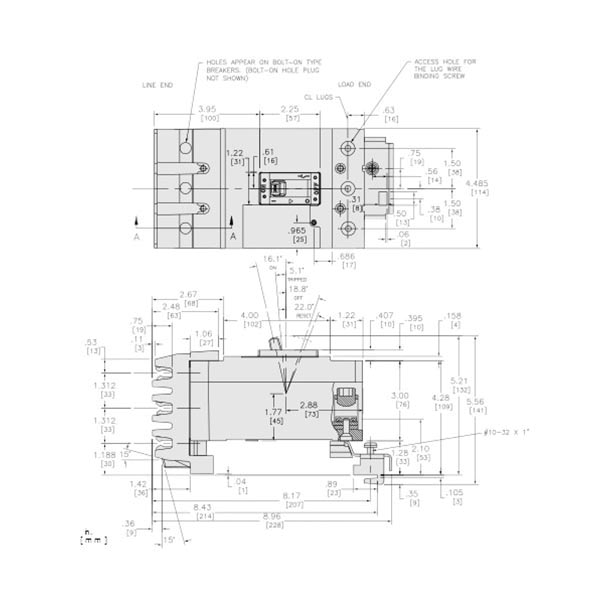

• Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QGA32200_Line_Drawing.pdf
