Square D QO120C QO120C

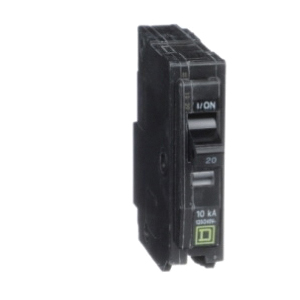

Square D QO120C Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 10 kA Interrupt, Single Pole

Square D QO120C Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole

Square D QO120C Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole QO120C

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one pole QO circuit breaker is rated at 20 A at 120/240 VAC. This unit provides 10 kA breaking capacity and is plug-in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL listed under UL File E84967 and are CSA certified under CSA master Contract 153555.
Square D Miniature Circuit Breaker, 20 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, Pressure Plate Connection, QO Frame, 14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 3/4 in Width, 3.11 in Height, Additional Information: 2.91 in D

Additional Information      :      2.91 in D
Amperage Rating      :      20 A
Connection Type      :      Pressure Plate
Frame Type      :      QO
Frequency Rating      :      50/60 Hz
Height      :      3.11 in
Interrupt Rating      :      10 kA
Mounting Type      :      Plug-In
Number of Poles      :      1
Temperature Rating      :      104 deg F
Voltage Rating      :      120/240 VAC
Width      :      3/4 in
Wire Size      :      14 to 8 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120C_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120C_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120C_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120C_Specification_Sheet.pdf
  • videoVideo Link https://www.youtube.com/watch?v=BN-HQQVJQuY
