Square D QO120CAFI QO120CAFI

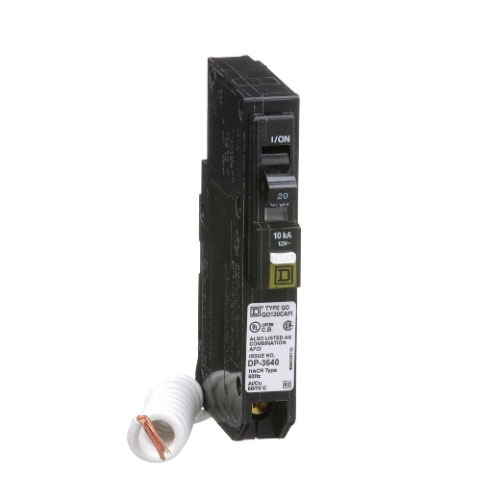

Square D QO120CAFI Combination AFCI/Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 10 kA Interrupt, Single Pole

Square D QO™ Series QO120CAFI Combination AFCI/Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole

Square D QO™ Series QO120CAFI Combination AFCI/Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole QO120CAFI

Square D Combination AFCI/Miniature Circuit Breaker, QO™ Series, 20 A, 120/240 VAC, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Pressure Plate Connection, QO Frame, Thermal Magnetic Trip, Pigtail Neutral Terminal, Paddle Actuator, 14 to 8 AWG Wire, Plug-In Mounting, 40 deg C, 3/4 in Width, 4.76 in Length, 2.91 in Height

Actuator Type      :      Paddle
Amperage Rating      :      20 A
Connection Type      :      Pressure Plate
Frame Type      :      QO
Height      :      2.91 in
Interrupt Rating      :      10 kA
Length      :      4.76 in
Mounting Type      :      Plug-In
Number of Poles      :      1
Phase      :      1 ph
Series      :      QO™ Series
Temperature Rating      :      40 deg C
Terminal Type      :      Pigtail Neutral
Trip Type      :      Thermal Magnetic
Voltage Rating      :      120/240 VAC
Width      :      3/4 in
Wire Size      :      14 to 8 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120CAFI_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120CAFI_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120CAFI_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120CAFI_Specification_Sheet.pdf
  • videoVideo Link https://www.youtube.com/embed/VfYBrW45QxY
