Square D QO120DF QO120DF

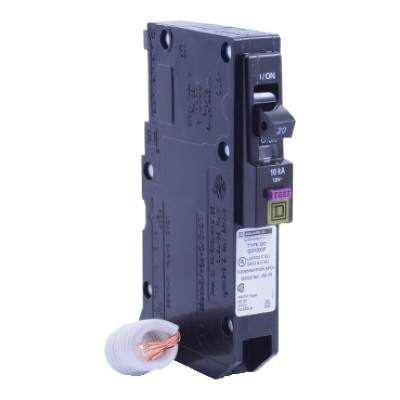

Square D QO120DF Dual Function Miniature Circuit Breaker, 120 VAC, 20 Amp, 10 kA Interrupt, Single Pole

Square D QO™ Series QO120DF Dual Function Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 -Pole

Square D QO™ Series QO120DF Dual Function Miniature Circuit Breaker, 120 VAC, 20 A, 10 kA Interrupt, 1 -Pole QO120DF

QO™ and QOB one, two and three-pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This one-pole QO™ circuit breaker is rated at 20 A at 120 VAC. This unit provides 10 kA breaking capacity and plug-in mounting. A full-line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a dual function feature with pigtail. This provides combination arc-fault and ground fault protection.

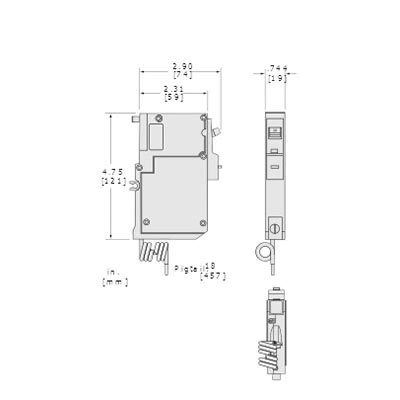

Square D Dual Function Miniature Circuit Breaker, Series: QO™ Series, 20 A, 120 VAC, 50/60 Hz, Interrupt Rating: 10 kA, Number of Poles: 1, Connection Type: Pressure Plate, Frame Type: QO, Pigtail Neutral Terminal, 14 to 8 AWG Wire, Plug-In Mounting, 104 deg F, 3/4 in W, 2.91 in L, 4.76 in H

Amperage Rating      :      20 A
Connection Type      :      Pressure Plate
Frame Type      :      QO
Frequency Rating      :      50/60 Hz
Height      :      4.76 in
Interrupt Rating      :      10 kA
Length      :      2.91 in
Mounting Type      :      Plug-In
Number of Poles      :      1
Series      :      QO™ Series
Temperature Rating      :      104 deg F
Terminal Type      :      Pigtail Neutral
Voltage Rating      :      120 VAC
Width      :      3/4 in
Wire Size      :      14 to 8 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOM2200VH_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120DF_Instruction_Installation_Manual.pdf
  • videoVideo Link https://www.youtube.com/embed/BN-HQQVJQuY
  • pdfWarranty Information https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO120DF_Warranty.pdf
