Square D QO142M200PC QO142M200PC

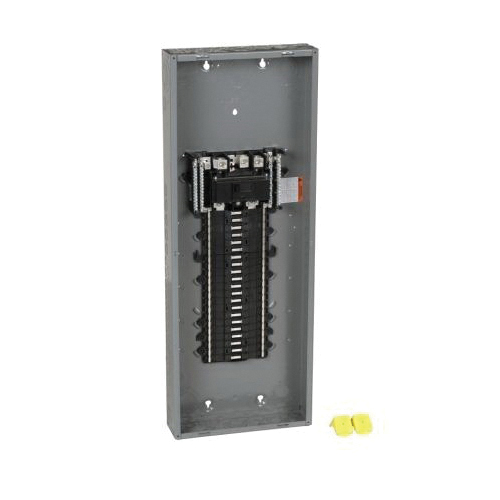

Square D QO142M200PC Main Breaker Load Center, 120/240 VAC, 200 Amp, 5Double Pole, 22 kA Interrupt

Square D QO™ QO142M200PC Main Breaker Load Center, 120/240 VAC, 200 A, 52 -Pole, 22 kA Interrupt

Square D QO™ QO142M200PC Main Breaker Load Center, 120/240 VAC, 200 A, 52 -Pole, 22 kA Interrupt QO142M200PC

Square D QO™ Main Breaker Load Center, 200 A, 120/240 VAC, 22 kA Interrupt, 3-Wire Wiring Configuration, Tandem Breaker, 52 Pole, 1 ph, 42 Spaces, 52 Circuits, Sheet Steel, Copper Bus, 4 AWG to 250 kcmil Wire, Flush, Surface Mount, NEMA 1, 23 to 104 deg F, 37.99 in H x 14.25 in W, Baked Enamel, Gray

Amperage Rating      :      200 A
Breaker Type      :      Tandem
Bus Material      :      Copper
Color      :      Gray
Dimensions      :      37.99 in H x 14.25 in W
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Interrupt Rating      :      22 kA
Material      :      Sheet Steel
Mounting Type      :      Flush, Surface
Number of Circuits      :      52
Number of Poles      :      52
Number of Spaces      :      42
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      4 AWG to 250 kcmil
Wiring Configuration      :      3-Wire
  • Plug-on neutral ready, built with a shielded copper bus bar that is plated for reliability
  • Engineered for fast installation and wire savings
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO124M100PC_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO142M200PC_Specification_Sheet.pdf
  • linkVideo Link https://youtu.be/dZfxxkYFDRQ
