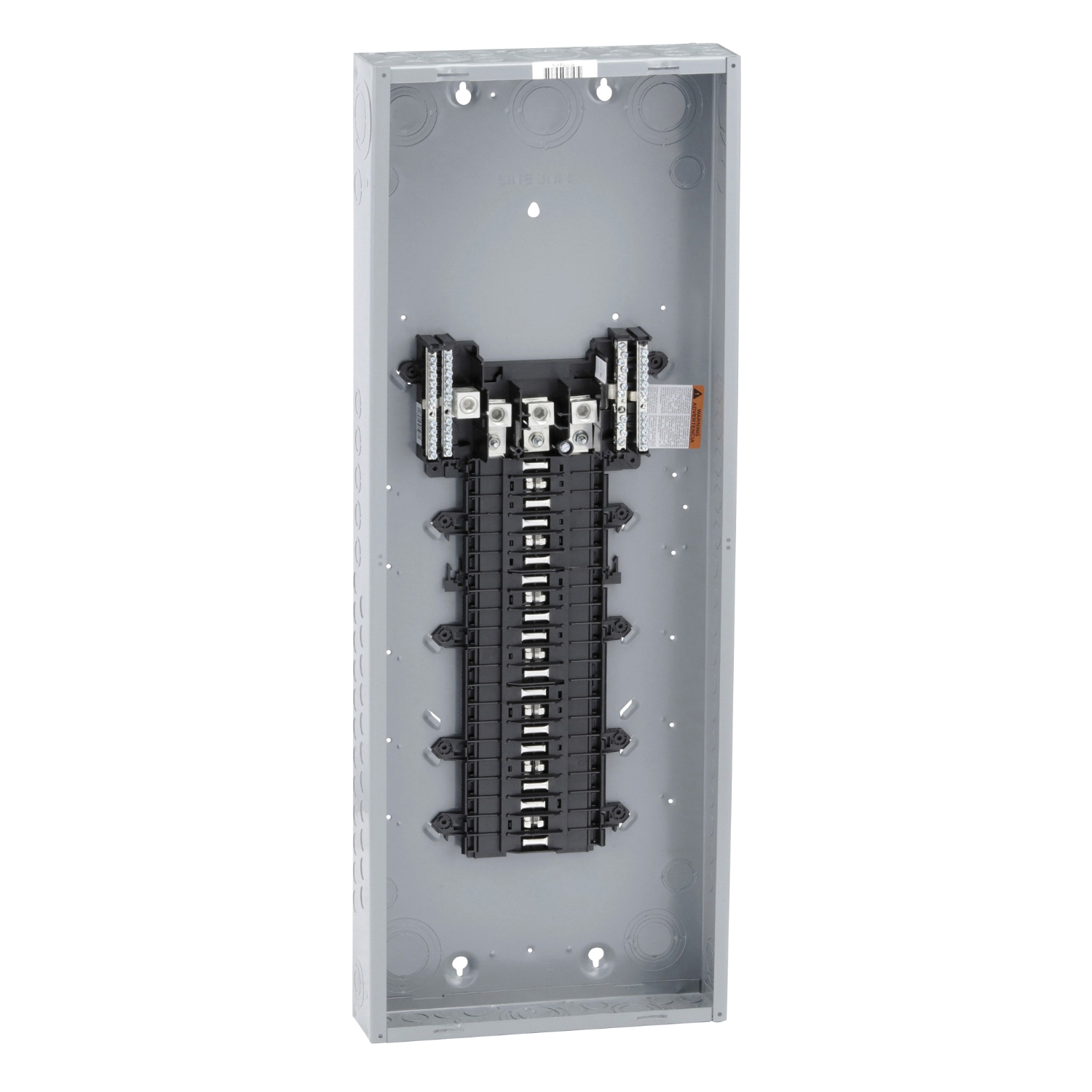

Square D QO342L225G QO342L225G

Square D QO342L225G Main Lug Load Center, 225 Amp, 208Y/120 VAC/240/120 VAC Delta/240 VAC Delta, 4Double Pole

Square D QO™ QO342L225G Main Lug Load Center, 225 A, 208Y/120 VAC/240/120 VAC Delta/240 VAC Delta, 42 -Pole

Square D QO™ QO342L225G Main Lug Load Center, 225 A, 208Y/120 VAC/240/120 VAC Delta/240 VAC Delta, 42 -Pole QO342L225G

QO™ load centers offer premium features by allowing QO™ breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside QO™ load centers enable the use of a full complement of accessories such as ground bars which are included here. Systems can be single or three-phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 deg to accommodate top or bottom service entrance feed which saves expensive service cable. QO™ load centers feature plated copper bus, providing superior performance and durability. This QO™ load center contains a main lug and is rated at 225 A and 3 phase. This system provides 42 spaces in a NEMA 1 enclosure.
Square D QO™ Main Lug Load Center, 225 A, 208Y/120 VAC/240/120 VAC Delta/240 VAC Delta, 3-Wire, 4-Wire Wiring Configuration, 42 Pole, 3 ph, 42 Spaces, 42 Circuits, Copper Bus, 6 AWG to 300 kcmil Wire, NEMA 1, Steel, Baked Enamel, Gray, 23 to 104 deg F, 37.99 in H x 14.25 in W, Additional Information: Tin-Plated Busbar

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      225 A
Bus Material      :      Copper
Color      :      Gray
Dimensions      :      37.99 in H x 14.25 in W
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Material      :      Steel
Number of Circuits      :      42
Number of Poles      :      42
Number of Spaces      :      42
Phase      :      3 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      208Y/120 VAC/240/120 VAC Delta/240 VAC Delta
Wire Size      :      6 AWG to 300 kcmil
Wiring Configuration      :      3-Wire, 4-Wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO342L225G_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM24L70RBCP_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO342L225G_Specification_Sheet.pdf
