Square D QO342MQ200 QO342MQ200

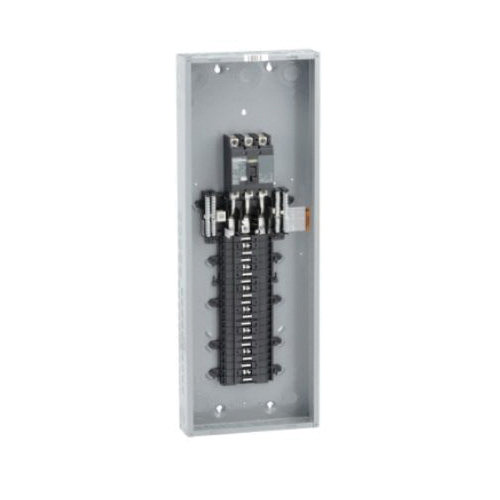

Square D QO342MQ200 Main Lug Load Center, 200 Amp, 208Y/120/240 VAC, 22 kA Interrupt

Square D QO™ QO342MQ200 Main Lug Load Center, 200 A, 208Y/120/240 VAC, 22 kA Interrupt

Square D QO™ QO342MQ200 Main Lug Load Center, 200 A, 208Y/120/240 VAC, 22 kA Interrupt QO342MQ200

Square D QO™ Main Lug Load Center, 200 A, 208Y/120/240 VAC, 22 kA Interrupt, 3-Wire, 4-Wire Wiring Configuration, 3 ph, Aluminum Bus, 4 AWG to 300 kcmil Wire, NEMA 1, Baked Enamel, Gray, 23 to 104 deg F, 39.37 in H x 14.25 in W, Additional Information: Tin-Plated Busbar

Additional Information      :      Tin-Plated Busbar
Amperage Rating      :      200 A
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      39.37 in H x 14.25 in W
Enclosure Type      :      NEMA 1
Finish      :      Baked Enamel
Interrupt Rating      :      22 kA
Phase      :      3 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      208Y/120/240 VAC
Wire Size      :      4 AWG to 300 kcmil
Wiring Configuration      :      3-Wire, 4-Wire
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM816L125PC_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM816L125PC_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO342MQ200_Specification_Sheet.pdf
