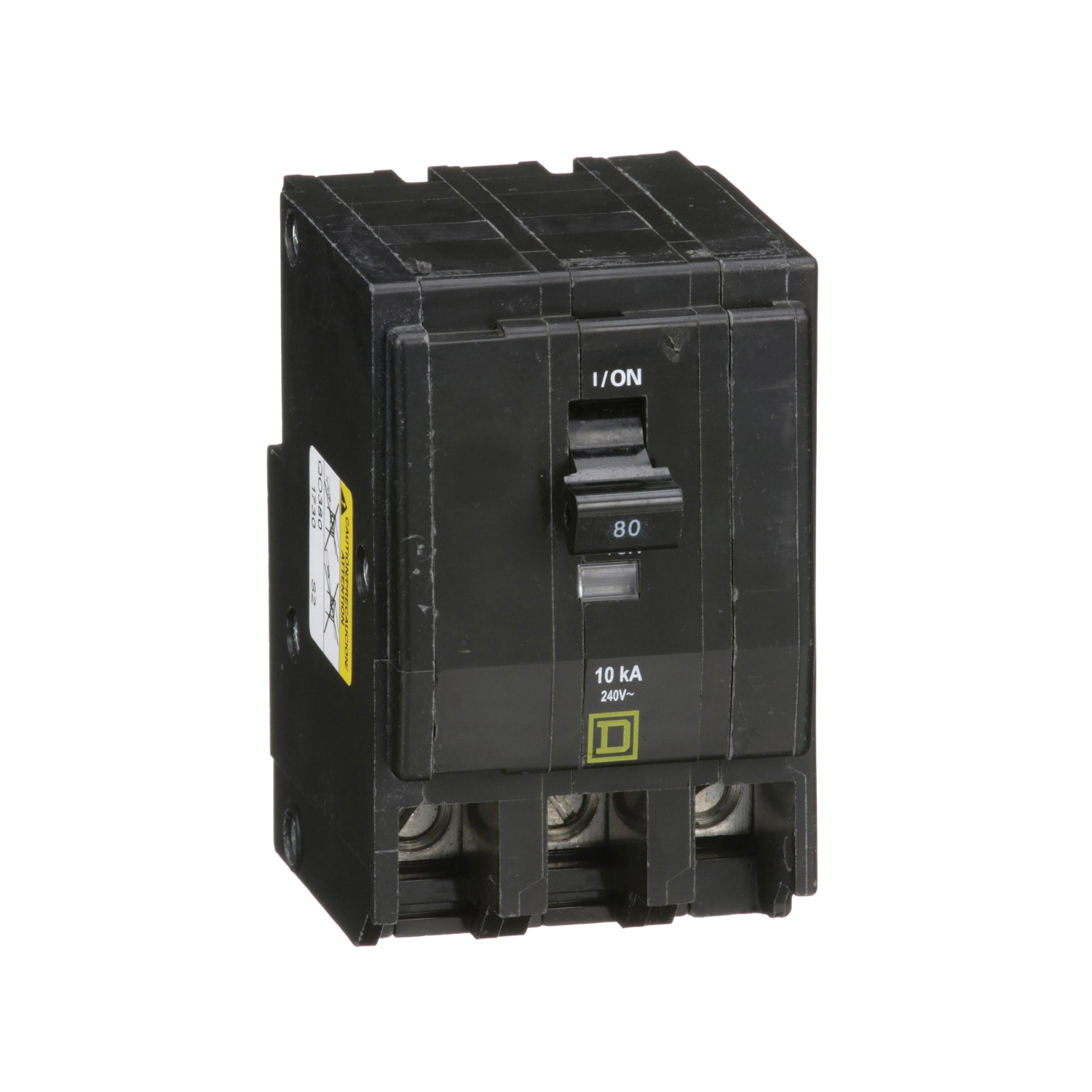

Square D QO380 Miniature Circuit Breaker, 120/240 VAC/48 VDC, 80 Amp, 5 kA, 10 kA Interrupt, Three Pole

QO and QOB one, two and three-pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and DC systems. These circuit breakers have an overcenter, trip-free toggle mechanism with quick make, quickbreak action and positive handle indication They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This QO miniature breaker is rated as 80 A, 120/240 V and three-pole. This unit provides 10 kA breaking capacity and plug-in mounting. A full line of factory installed accessories is also available such as shunt trips, auxiliary switches and alarm switches. QO breakers use a compact 3/4 in W design for small system footprint. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Square D Miniature Circuit Breaker, QO™ Series, 80 A, 120/240 VAC/48 VDC, 50/60 Hz, 5 kA, 10 kA Interrupt Rating, 3 Poles, Box Lug Connection, 4 to 2/0 AWG Wire, Plug-In Mounting, 40 deg C, 2.24 in Width, 2.91 in Length, 3-1/2 in Height

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO1515CP_Catalog.pdf
• Instruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO380_Instruction_Installation_Manual.pdf
• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO380_Specification_Sheet.pdf
