Square D QO4L100S QO4L100S

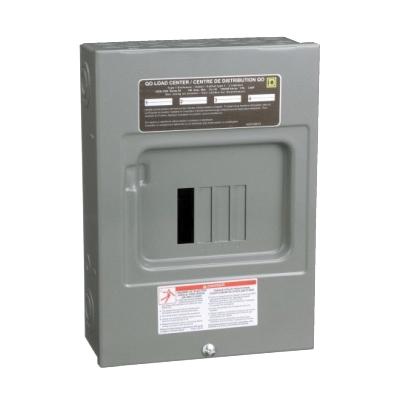

Square D QO4L100S Main Lug Load Center, 100 Amp, 120/240 VAC, 10 kA Interrupt, Single Pole

Square D QO4L100S Main Lug Load Center, 100 A, 120/240 VAC, 10 kA Interrupt, 1 -Pole

Square D QO4L100S Main Lug Load Center, 100 A, 120/240 VAC, 10 kA Interrupt, 1 -Pole QO4L100S

Square D Main Lug Load Center, 100 A, 120/240 VAC, 10 kA Interrupt, 3-Wire Wiring Configuration, QO Breaker, 1 Pole, 1 ph, 4 Spaces, 4 Circuits, Aluminum Bus, 8 to 1 AWG Wire, Surface Mount, NEMA 1, Steel, Gray, 23 to 104 deg F, 12.56 in H x 8.9 in W x 3.74 in D

Amperage Rating      :      100 A
Breaker Type      :      QO
Bus Material      :      Aluminum
Color      :      Gray
Dimensions      :      12.56 in H x 8.9 in W x 3.74 in D
Enclosure Type      :      NEMA 1
Interrupt Rating      :      10 kA
Material      :      Steel
Mounting Type      :      Surface
Number of Circuits      :      4
Number of Poles      :      1
Number of Spaces      :      4
Phase      :      1 ph
Temperature Rating      :      23 to 104 deg F
Voltage Rating      :      120/240 VAC
Wire Size      :      8 to 1 AWG
Wiring Configuration      :      3-Wire
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QO4L100S_Specification_Sheet.pdf
