Square D QOB380 QOB380

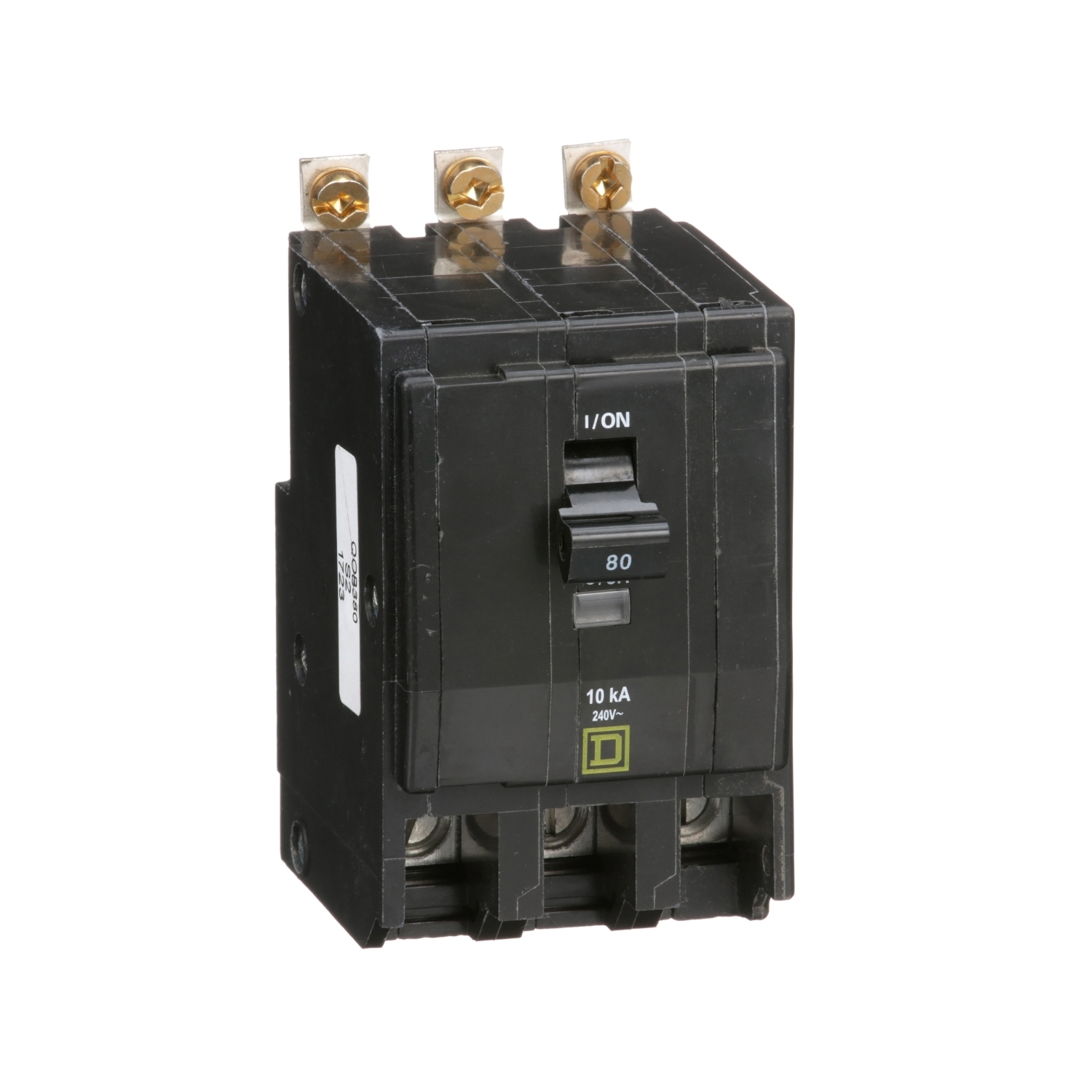

Square D QOB380 Miniature Circuit Breaker, 120/240 VAC, 80 Amp, 10 kA Interrupt, Three Pole, Thermal Magnetic Trip

Square D QOB™ Series QOB380 Circuit Breaker, 120/240 VAC, 80 A, 10 kA Interrupt, 3-Pole, Thermal Magnetic Trip

Square D QOB™ Series QOB380 Circuit Breaker, 120/240 VAC, 80 A, 10 kA Interrupt, 3-Pole, Thermal Magnetic Trip QOB380

Square D Circuit Breaker, QOB™ Series, 80 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 3 Poles, 3 ph Phase, Box Lug Connection, Thermal Magnetic Trip, Paddle Actuator, 4 to 2/0 AWG Aluminum/Copper Wire, Bolt-On Mounting, 40 deg C, 2.24 in Width, 2.91 in Length, 3-1/2 in Height

Actuator Type      :      Paddle
Amperage Rating      :      80 A
Connection Type      :      Box Lug
Frequency Rating      :      50/60 Hz
Height      :      3-1/2 in
Interrupt Rating      :      10 kA
Length      :      2.91 in
Mounting Type      :      Bolt-On
Number of Poles      :      3
Phase      :      3 ph
Series      :      QOB™ Series
Temperature Rating      :      40 deg C
Trip Type      :      Thermal Magnetic
Voltage Rating      :      120/240 VAC
Width      :      2.24 in
Wire Size      :      4 to 2/0 AWG Aluminum/Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOB330_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOB3100_Instruction_Installation_Manual.pdf
  • videoVideo Link https://www.youtube.com/embed/BN-HQQVJQuY
