Square D QOH260 QOH260

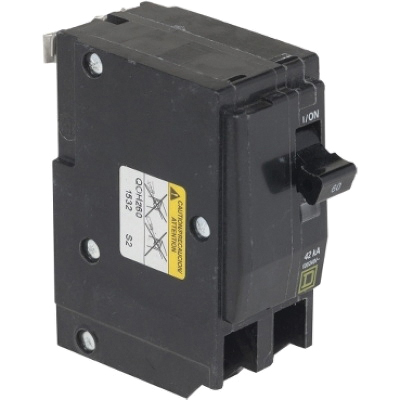

Square D QOH260 Standard Miniature Circuit Breaker, 120/240 VAC, 60 Amp, 42 kA Interrupt, Double Pole

Square D QO™ Series QOH260 Standard Miniature Circuit Breaker, 120/240 VAC, 60 A, 42 kA Interrupt, 2-Pole

Square D QO™ Series QOH260 Standard Miniature Circuit Breaker, 120/240 VAC, 60 A, 42 kA Interrupt, 2-Pole QOH260

QO™ and QOB one, two and three-pole thermal magnetic circuit breakers provide overcurrent protection and switching on AC and DC systems. These circuit breakers have an over center, trip-free toggle mechanism with quick-make, quick-break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This two-pole QO™ circuit breaker is rated at 60 A at 120/240 VAC. This unit provides 42 kA breaking capacity and plug-in mounting. A full-line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches.

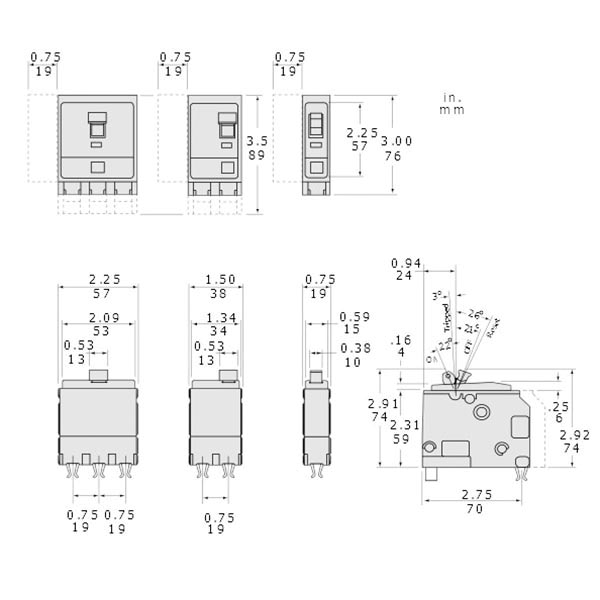

Square D Standard Miniature Circuit Breaker, QO™ Series, 60 A, 120/240 VAC, 50/60 Hz, Interrupt Rating: 42 kA, Number of Poles: 2, Connection Type: Box Lug, Frame Type: QO, 8 to 2 AWG Wire, Plug-In Mounting, 104 deg F, 2.24 in W, 2.91 in L, 3.11 in H

Amperage Rating      :      60 A
Connection Type      :      Box Lug
Frame Type      :      QO
Frequency Rating      :      50/60 Hz
Height      :      3.11 in
Interrupt Rating      :      42 kA
Length      :      2.91 in
Mounting Type      :      Plug-In
Number of Poles      :      2
Series      :      QO™ Series
Temperature Rating      :      104 deg F
Voltage Rating      :      120/240 VAC
Width      :      2.24 in
Wire Size      :      8 to 2 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOH260_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOH260_Instruction_Installation_Manual.pdf
