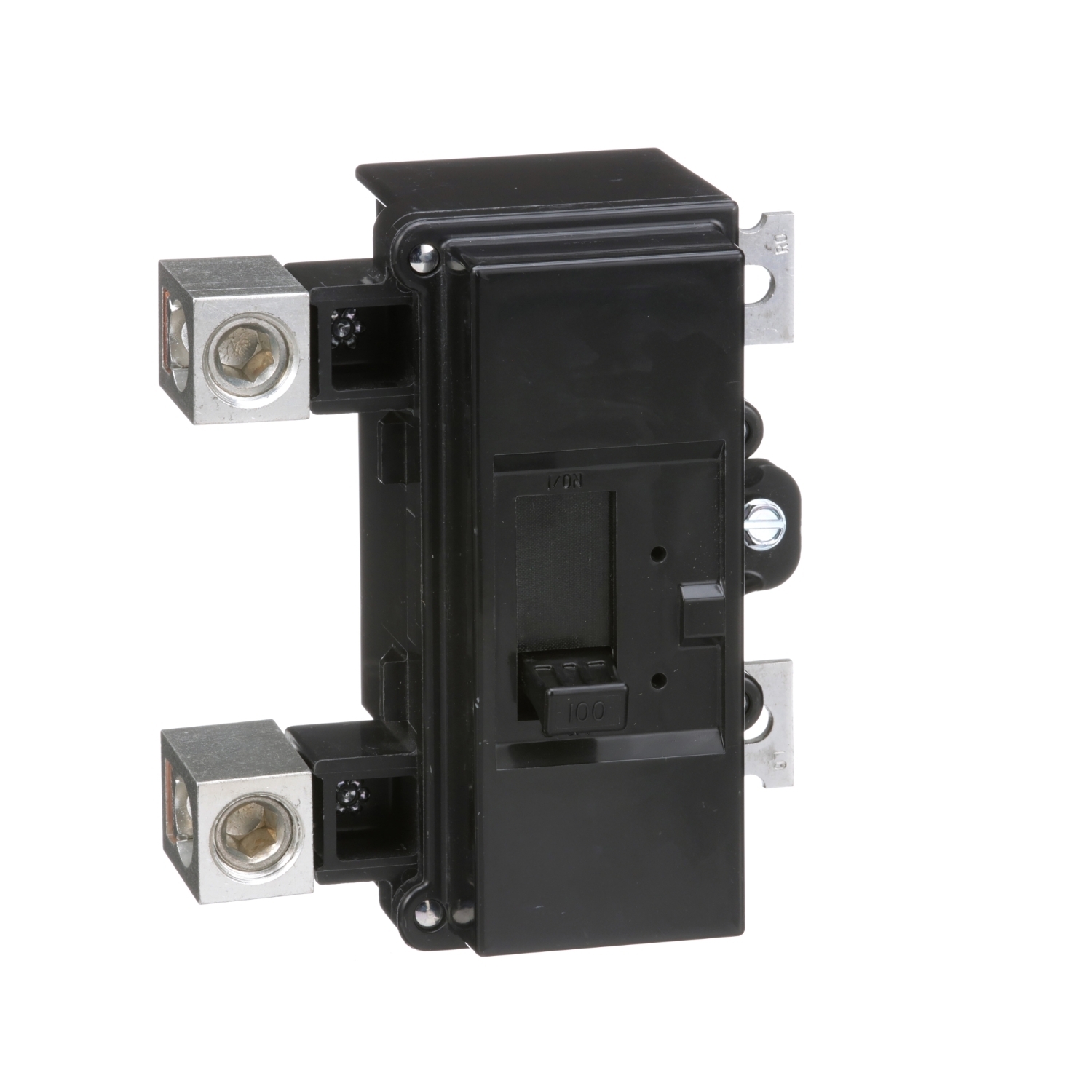

Square D QOM2100VH QOM2100VH

Square D QOM2100VH Miniature Circuit Breaker, 120/240 VAC, 100 Amp, 22 kA Interrupt, Double Pole, Thermal Magnetic Trip

Square D QO™ Series QOM2100VH Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2-Pole, Thermal Magnetic Trip

Square D QO™ Series QOM2100VH Circuit Breaker, 120/240 VAC, 100 A, 22 kA Interrupt, 2-Pole, Thermal Magnetic Trip QOM2100VH

Square D Circuit Breaker, QO™ Series, 100 A, 120/240 VAC, 50/60 Hz, 22 kA Interrupt Rating, 2 Poles, 1 ph Phase, Box Lug Connection, Thermal Magnetic Trip, 4 AWG to 300 kcmil Aluminum/Copper Wire, Bolt-On Mounting, 40 deg C, 3.58 in Width, 5.08 in Length, 5.59 in Height

Amperage Rating      :      100 A
Connection Type      :      Box Lug
Frequency Rating      :      50/60 Hz
Height      :      5.59 in
Interrupt Rating      :      22 kA
Length      :      5.08 in
Mounting Type      :      Bolt-On
Number of Poles      :      2
Phase      :      1 ph
Series      :      QO™ Series
Temperature Rating      :      40 deg C
Trip Type      :      Thermal Magnetic
Voltage Rating      :      120/240 VAC
Width      :      3.58 in
Wire Size      :      4 AWG to 300 kcmil Aluminum/Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM215_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOM2100VH_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOM2100VH_Instruction_Installation_Manual.pdf
  • linkVideo Link https://youtu.be/BN-HQQVJQuY
