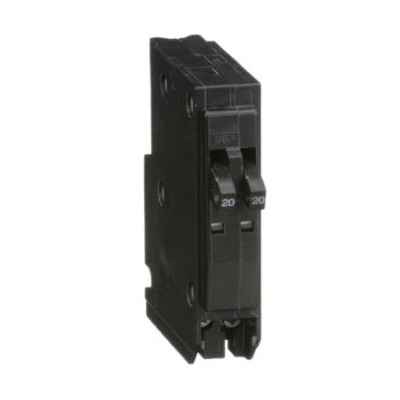

Square D QOT2020 QOT2020

Square D QOT2020 Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 10 kA Interrupt, Single Pole

Square D QO™ Series QOT2020 Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole

Square D QO™ Series QOT2020 Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1-Pole QOT2020

QO circuit breakers come in plug-on or bolt-on options and a complete range of amperages and interrupting ranges to fit into various QO distribution panels. QO is the "World's Finest" industry leading offer since 1955, with features engineered for faster installation, reliability and quality.
Square D Circuit Breaker, QO™ Series, 20 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Pressure Plate Connection, 1-Space Frame, 14 to 8 AWG, 12 to 8 AWG Wire, Plug-In Mounting, 40 deg C, 3/4 in Width, 2.91 in Length, 3.23 in Height

Amperage Rating      :      20 A
Connection Type      :      Pressure Plate
Frame Type      :      1-Space
Frequency Rating      :      50/60 Hz
Height      :      3.23 in
Interrupt Rating      :      10 kA
Length      :      2.91 in
Mounting Type      :      Plug-In
Number of Poles      :      1
Phase      :      1 ph
Series      :      QO™ Series
Temperature Rating      :      40 deg C
Voltage Rating      :      120/240 VAC
Width      :      3/4 in
Wire Size      :      14 to 8 AWG, 12 to 8 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_HOM115CP_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOT2020_Specification_Sheet.pdf
