Square D QOU110 QOU110

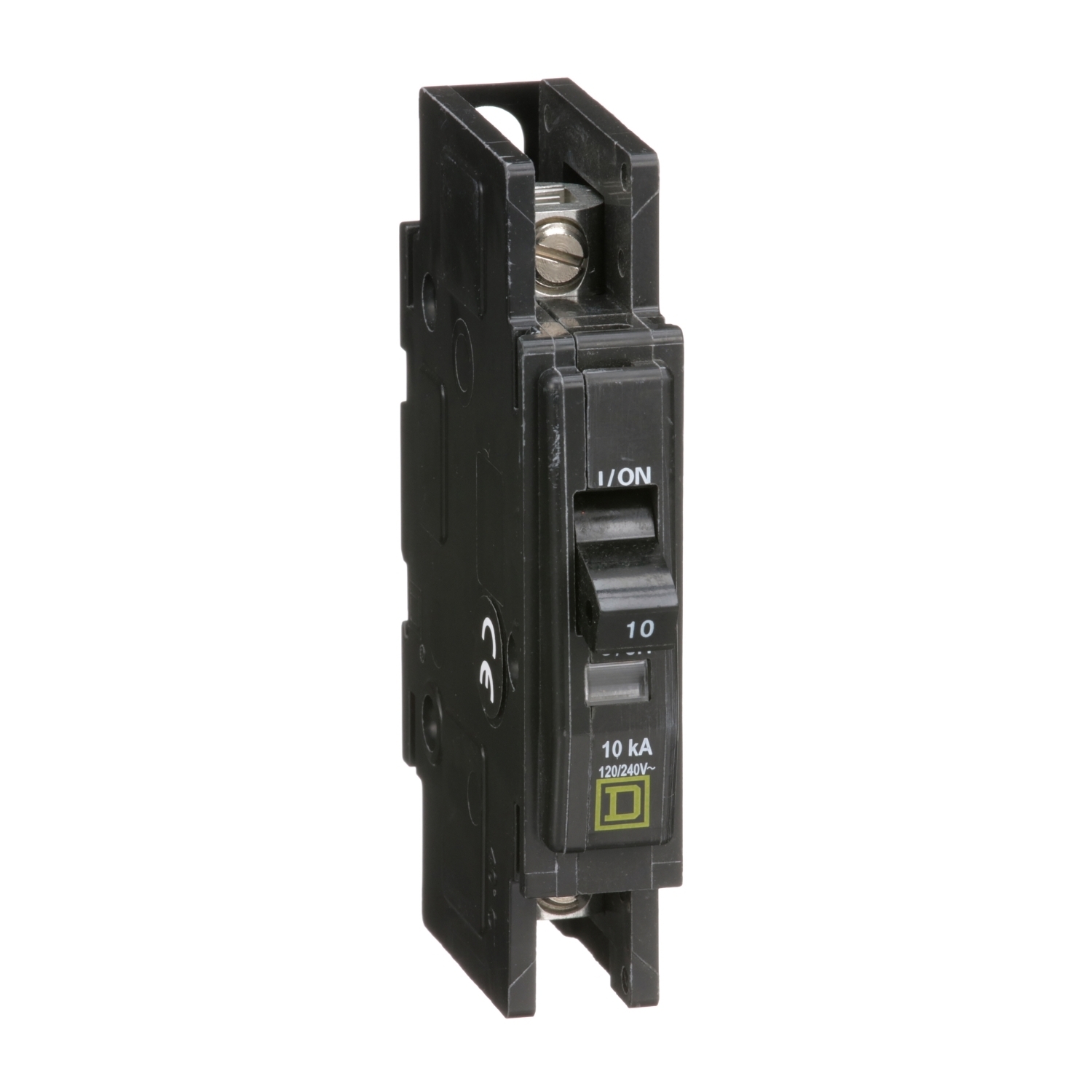

Square D QOU110 Miniature Circuit Breaker, 120/240 VAC, 10 Amp, 10 kA Interrupt, Single Pole, Thermal Magnetic Trip

Square D QOU110 Circuit Breaker, 120/240 VAC, 10 A, 10 kA Interrupt, 1-Pole, Thermal Magnetic Trip

Square D QOU110 Circuit Breaker, 120/240 VAC, 10 A, 10 kA Interrupt, 1-Pole, Thermal Magnetic Trip QOU110

Square D Circuit Breaker, 10 A, 120/240 VAC, 50/60 Hz, 10 kA Interrupt Rating, 1 Poles, 1 ph Phase, Slotted Box Lugs Connection, Thermal Magnetic Trip, Toggle Actuator, 14 to 2 AWG Aluminum/Copper Wire, DIN Rail Mounting, 40 deg C, 3/4 in Width, 2.95 in Length, 4.05 in Height

Actuator Type      :      Toggle
Amperage Rating      :      10 A
Connection Type      :      Slotted Box Lugs
Frequency Rating      :      50/60 Hz
Height      :      4.05 in
Interrupt Rating      :      10 kA
Length      :      2.95 in
Mounting Type      :      DIN Rail
Number of Poles      :      1
Phase      :      1 ph
Temperature Rating      :      40 deg C
Trip Type      :      Thermal Magnetic
Voltage Rating      :      120/240 VAC
Width      :      3/4 in
Wire Size      :      14 to 2 AWG Aluminum/Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120_Catalog.pdf
  • pdfFull Engineering Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120_Full_Engineering_Drawing.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120_Instruction_Installation_Manual.pdf
  • linkVideo Link https://youtu.be/BN-HQQVJQuY
