Square D QOU120HM QOU120HM

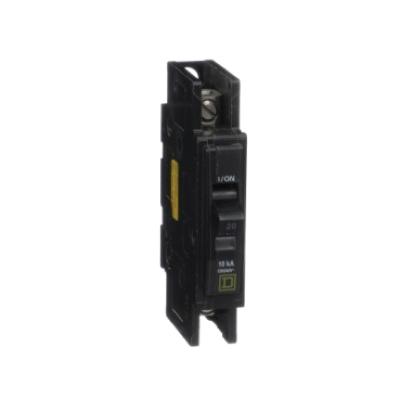

Square D QOU120HM Miniature Circuit Breaker, 120/240 VAC, 20 Amp, 10 kA Interrupt, Single Pole, High Magnetic Trip

Square D QOU Series QOU120HM Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 -Pole, High Magnetic Trip

Square D QOU Series QOU120HM Miniature Circuit Breaker, 120/240 VAC, 20 A, 10 kA Interrupt, 1 -Pole, High Magnetic Trip QOU120HM

QO™ and QOU miniature circuit breakers, QOU120HM, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These breakers provide a means to manually open a circuit. QOU breakers provided with high magnetic trip for applications with high inrush current can occur.
Square D Miniature Circuit Breaker, Series: QOU Series, 20 A, 120/240 VAC, Interrupt Rating: 10 kA, Number of Poles: 1, Connection Type: Box Lug, Frame Type: QOU, High Magnetic Trip, 14 to 2 AWG Wire, Unit Mounting, 3/4 in W, 2.95 in L, 4.05 in H

Amperage Rating      :      20 A
Connection Type      :      Box Lug
Frame Type      :      QOU
Height      :      4.05 in
Interrupt Rating      :      10 kA
Length      :      2.95 in
Mounting Type      :      Unit
Number of Poles      :      1
Series      :      QOU Series
Trip Type      :      High Magnetic
Voltage Rating      :      120/240 VAC
Width      :      3/4 in
Wire Size      :      14 to 2 AWG
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120HM_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120HM_Instruction_Installation_Manual.pdf

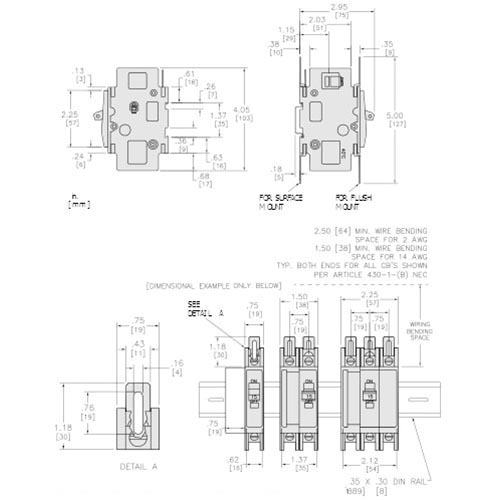

  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU120HM_Line_Drawing.pdf
