Square D QOU380 QOU380

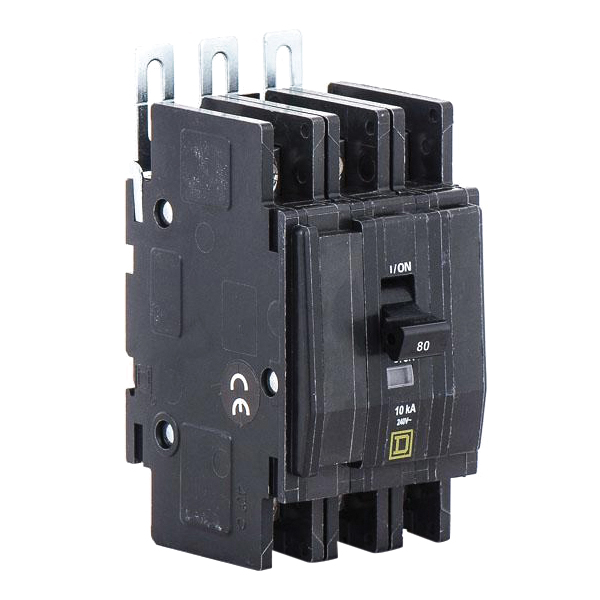

Square D QOU380 Miniature Circuit Breaker, 240 VAC/60 VDC, 80 Amp, 5 kA, 10 kA Interrupt, Three Pole

Square D QOU380 Circuit Breaker, 240 VAC/60 VDC, 80 A, 5 kA, 10 kA Interrupt, 3-Pole

Square D QOU380 Circuit Breaker, 240 VAC/60 VDC, 80 A, 5 kA, 10 kA Interrupt, 3-Pole QOU380

Square D Circuit Breaker, 80 A, 240 VAC/60 VDC, 5 kA, 10 kA Interrupt Rating, 3 Poles, 3 ph Phase, Slotted Box Lugs Connection, 12 to 2/0 AWG Aluminum/Copper Wire, Unit Mounting, 40 deg C, 2-1/4 in Width, 2.95 in Length, 4.45 in Height

Amperage Rating      :      80 A
Connection Type      :      Slotted Box Lugs
Height      :      4.45 in
Interrupt Rating      :      5 kA, 10 kA
Length      :      2.95 in
Mounting Type      :      Unit
Number of Poles      :      3
Phase      :      3 ph
Temperature Rating      :      40 deg C
Voltage Rating      :      240 VAC/60 VDC
Width      :      2-1/4 in
Wire Size      :      12 to 2/0 AWG Aluminum/Copper
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU380_Catalog.pdf
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU380_Instruction_Installation_Manual.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_QOU380_Specification_Sheet.pdf
