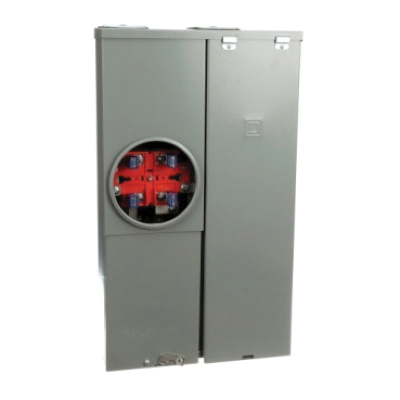

Square D SC1624M100S Combination Service Entrance Device, 100 Amp, 10 kA Interrupt

The Square D surface-mount CSED SC1624M100S provides metered service and a main circuit breaker and 16 full branch spaces up to 24 circuits using tandems. All-in-Ones are UL listed, suitable only for use as service equipment. This surface-mounted device has UL listed rated current rating as 100 A and short circuit current 10 kA. Factory installed main breaker, compact design, overhead and or underground feed, wiring room with 6-1/2 in D enclosures are ideal solution for easy installation. Knockouts above the top right-side wire gutter provides easy exit for load center wires. Factory installed blade guides on line and load meter jaws ensures proper alignment of meter blades with meter jaws to prevent meter socket damage. Forward tilted top end wall promotes water run-off to prevent pooling.
Square D Combination Service Entrance Device, 100 A, 10 kA Interrupt, 100 A Bus Rating, 16 Spaces, 24 Circuits, Surface Mount, NEMA PB-1, 26.5 in H x 14.77 in W x 5.2 in D

• Specification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_SC1624M100S_Specification_Sheet.pdf
