Square D XB4BT845 XB4BT845

Square D XB4BT845 Emergency Stop Pushbutton, 600 VAC, Slow Break, Push-Pull Actuation, Screw Clamp Terminal

Square D XB4 Series XB4BT845 Emergency Stop Pushbutton, 600 VAC, Slow Break, Push-Pull Actuation, Screw Clamp Terminal

Square D XB4 Series XB4BT845 Emergency Stop Pushbutton, 600 VAC, Slow Break, Push-Pull Actuation, Screw Clamp Terminal XB4BT845

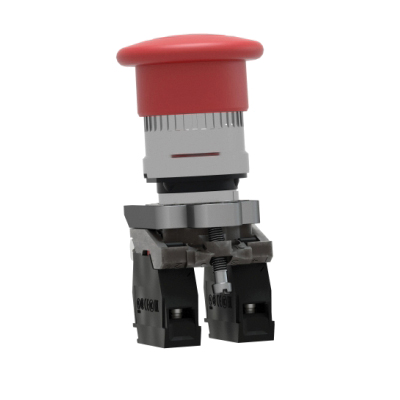

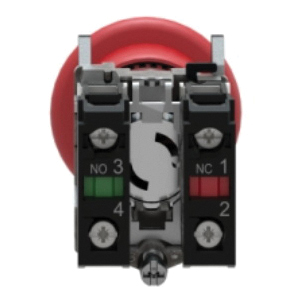

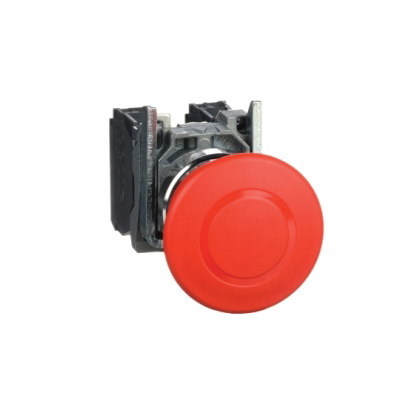

This Harmony XB4 emergency stop/shutdown 40 mm mushroom head modular red pushbutton operates with a latched push pull mechanism. It has a metal bezel. This emergency stop/shutdown button, also called EMS (Emergency Machine Stop) and EMO (Emergency Off), is easily installed into standard 22 mm Dia cutouts and connected with simple screw clamp connections. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 40 mm mushroom shape. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments.
Square D Emergency Stop Pushbutton, Series: XB4 Series, 600 VAC, Slow Break, Mushroom Push Button Shape, Push-Pull Actuation Type, Screw Clamp Terminal Connection Type, Illuminated Illuminated/Non-Illuminated, 13, NEMA 4X, Screw Mount, -40 to 158 deg F, Red, Metal Housing, 1.58 in Dia x 1.83 in H

Actuation Type      :      Push-Pull
Contact Form      :      Slow Break
Dimensions      :      1.58 in Dia x 1.83 in H
Enclosure Type      :      13, NEMA 4X
Housing Color      :      Red
Housing Material      :      Metal
Illuminated/Non-Illuminated      :      Illuminated
Mounting Type      :      Screw
Push Button Shape      :      Mushroom
Series      :      XB4 Series
Temperature Rating      :      -40 to 158 deg F
Terminal Connection Type      :      Screw Clamp
Voltage Rating      :      600 VAC
  • Wide modular range to suit machines and operator safety
  • Designed to fit in a 22 mm cutout or Harmony XAPK control station ensuring compatibility with pre-existing machinery
  • Ergonomic design for emergency actuation in several environments
  • Large set of accessories - circular legends, illuminated legend rings for harsh environments
  • Wide range of operating temperature from - 40 to 158 deg F
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_XB4BT845_Instruction_Installation_Manual.pdf
  • pdfRoHS https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_XB4BT845_RoHS.pdf
  • pdfRoHS https://media.distributordatasolutions.com/schneider2/2019q4/ce3eaca9a22e405de9bff3d8d12f862b0489def1.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Square_D_XB4BT845_Specification_Sheet.pdf
  • videoVideo Link https://www.youtube.com/embed/kSLYD1dXJVc
