Square D XB5AW3345 XB5AW3345

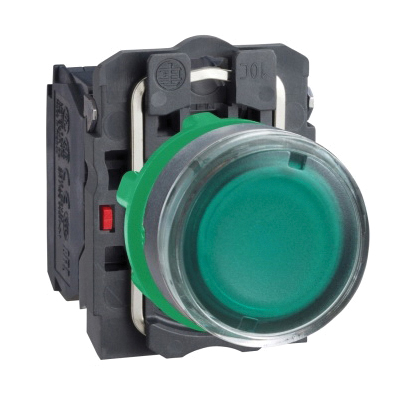

Square D XB5AW3345 Illuminated Pushbutton With Plain Lens, 220 to 240 VAC, 1NO-1NC, Plastic Housing

Square D Harmony™ XB5 Series XB5AW3345 Illuminated Pushbutton With Plain Lens, 220 to 240 VAC, 1NO-1NC, Plastic Housing

Square D Harmony™ XB5 Series XB5AW3345 Illuminated Pushbutton With Plain Lens, 220 to 240 VAC, 1NO-1NC, Plastic Housing XB5AW3345

This Harmony™ XB5, plain lens illuminated modular green pushbutton operates with a spring return/impulse mechanism, is supplied with 220 V to 240 V AC/DC, uses an integral transformer and has screw clamp terminals. This illuminated pushbutton with integral transformer provides an ergonomic and visual interface for controlling your machines. It is easily installed into standard 22 mm Dia cut-outs and connected to control circuits with classic screw clamp connections. It is clearly distinguishable visually at a distance thanks to its illuminated head and clear color. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Square D Harmony™ Illuminated Pushbutton, Series: XB5 Series, 220 to 240 VAC, 50/60 Hz, 1NO-1NC, 0.1 A at 600 VDC, 0.27 A at 250 VDC, 0.55 A at 125 VDC, 1.2 A at 600 VAC, 3 A at 240 VAC, 6 A at 120 VAC Contact, Spring Return, Flush Push Actuator, 10000000 cycles Operating Cycles, Screw Clamp Wire Connection Type, 13, 4X, NEMA 4, IP66, IP67, IP69, IP69K IP Rating, Panel Mount, -40 to 55 deg C, Green, Plastic Housing, 42 mm Height, 30 mm Width, 101 mm D

Action Type      :      Spring Return
Actuator Type      :      Flush Push
Contact Configuration      :      1NO-1NC
Contact Rating      :      0.1 A at 600 VDC, 0.27 A at 250 VDC, 0.55 A at 125 VDC, 1.2 A at 600 VAC, 3 A at 240 VAC, 6 A at 120 VAC
Depth      :      101 mm
Enclosure Type      :      13, 4X, NEMA 4
Frequency Rating      :      50/60 Hz
Height      :      42 mm
Housing Color      :      Green
Housing Material      :      Plastic
IP Rating      :      IP66, IP67, IP69, IP69K
Mounting Type      :      Panel
Operating Cycles      :      10000000 cycles
Series      :      XB5 Series
Temperature Rating      :      -40 to 55 deg C
Voltage Rating      :      220 to 240 VAC
Width      :      30 mm
Wire Connection Type      :      Screw Clamp
  • pdfInstruction/Installation Manual https://assets.unilogcorp.com/267/ITEM/DOC/SquareD_XB5AW3145_Instruction_Installation_Manual.pdf
  • pdfRoHS https://media.distributordatasolutions.com/schneider2/2019q4/51c2281f47c52afdb5d679e2e2a11ef9b7a4bc5c.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/SquareD_XB5AW3345_Specification_Sheet.pdf
  • pdfSpecification Sheet https://media.distributordatasolutions.com/schneider2/2019q4/77e58f37838045e748e1e38ec184b7e4cf97b5cf.pdf
  • videoVideo Link https://www.youtube.com/embed/qOrWcETKQZg
