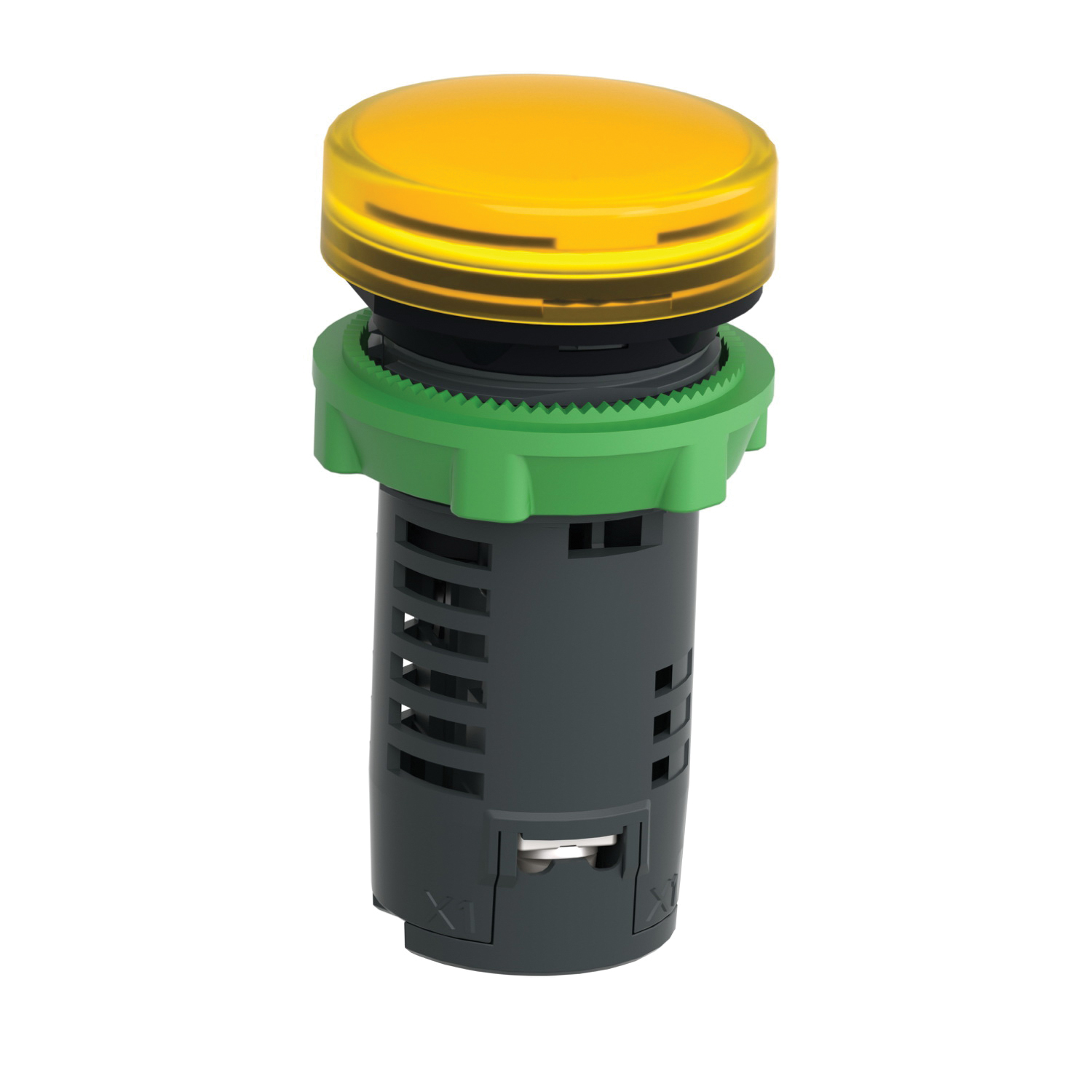

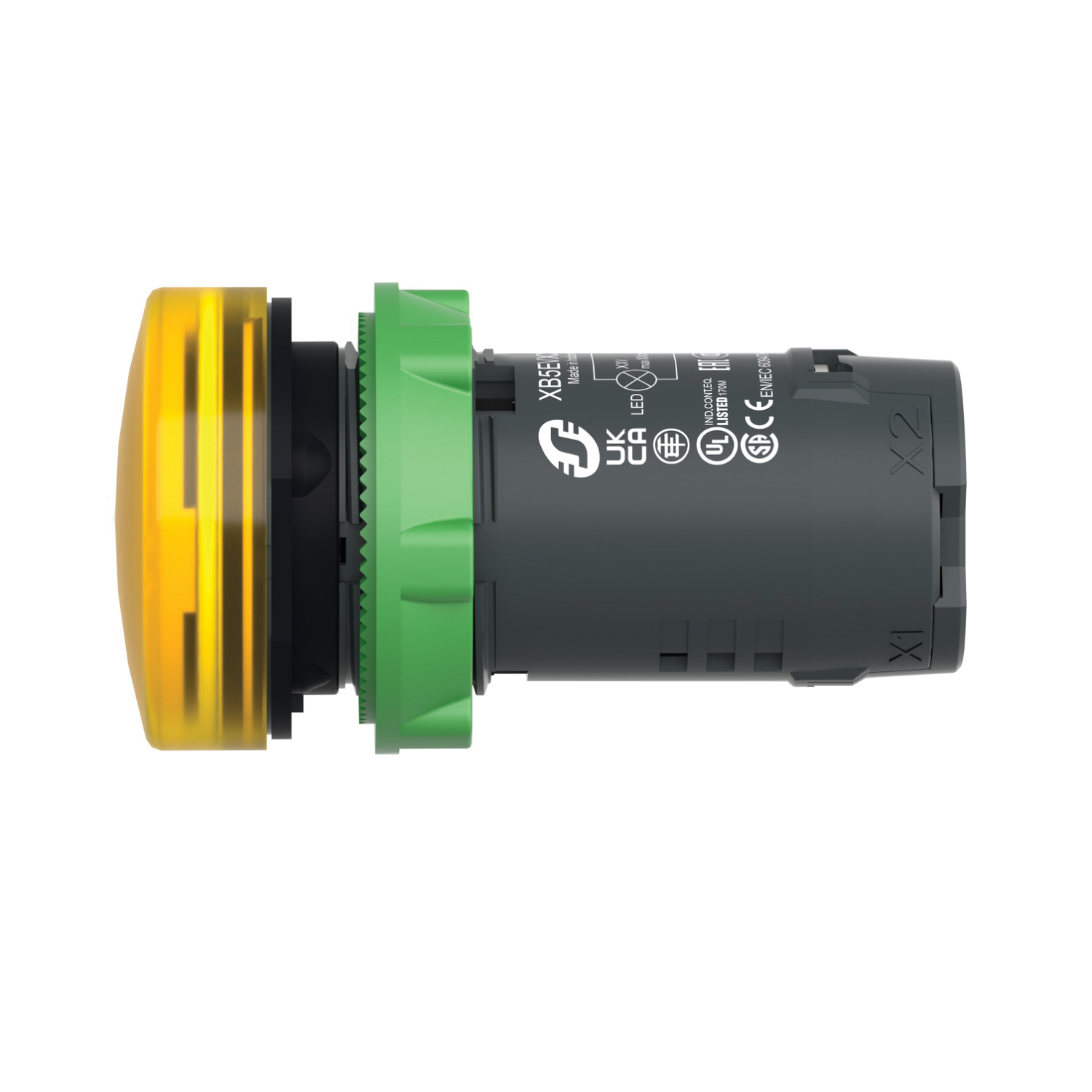

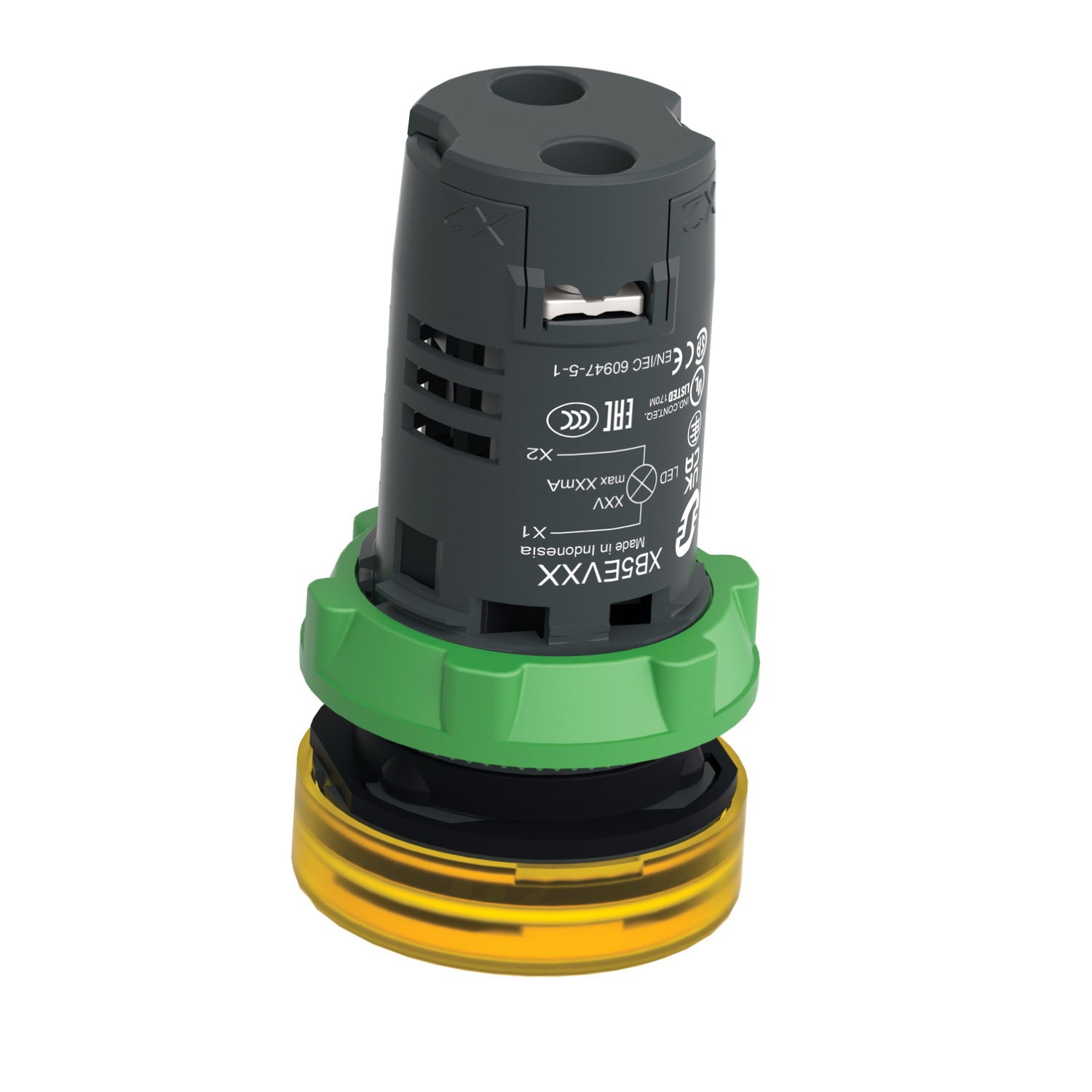

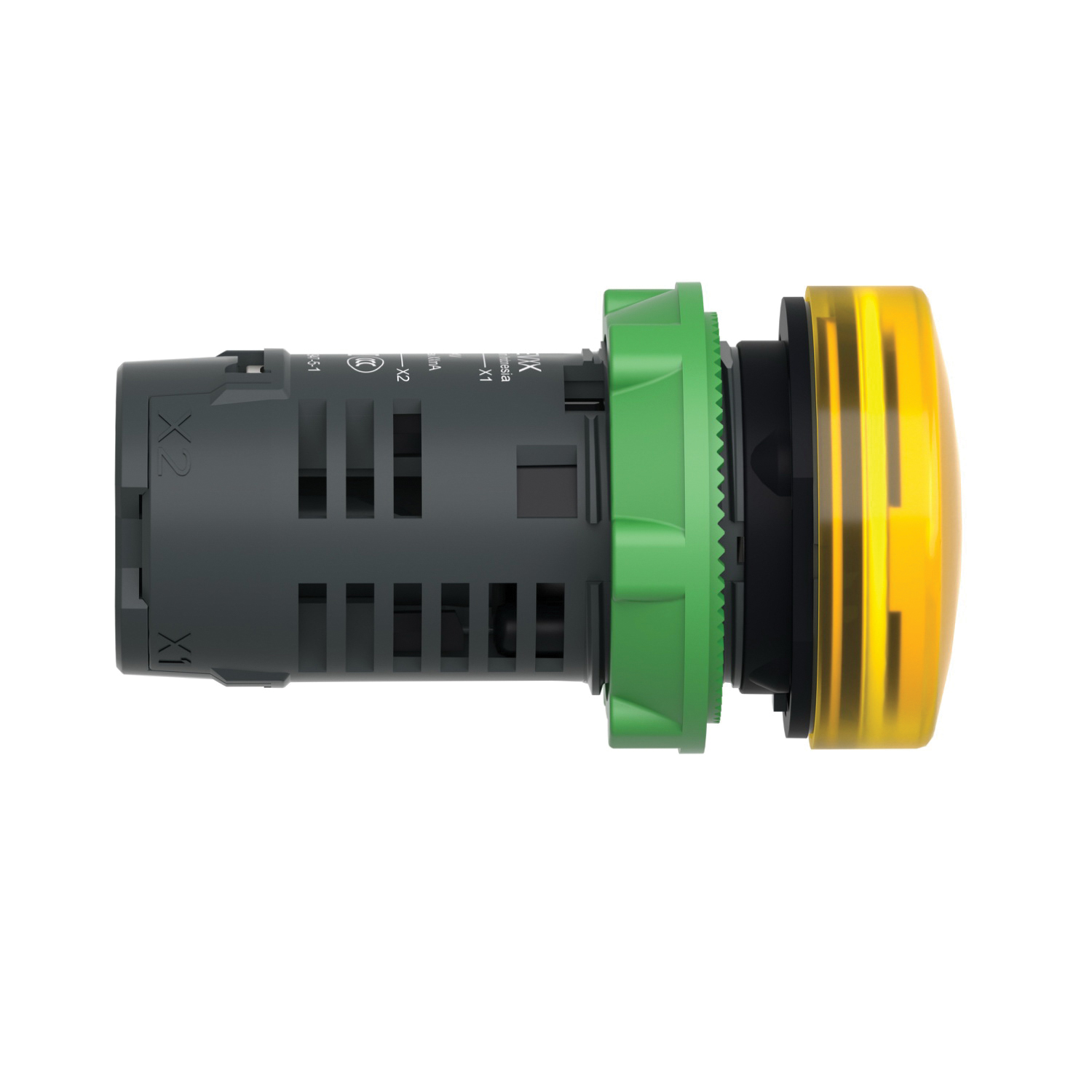

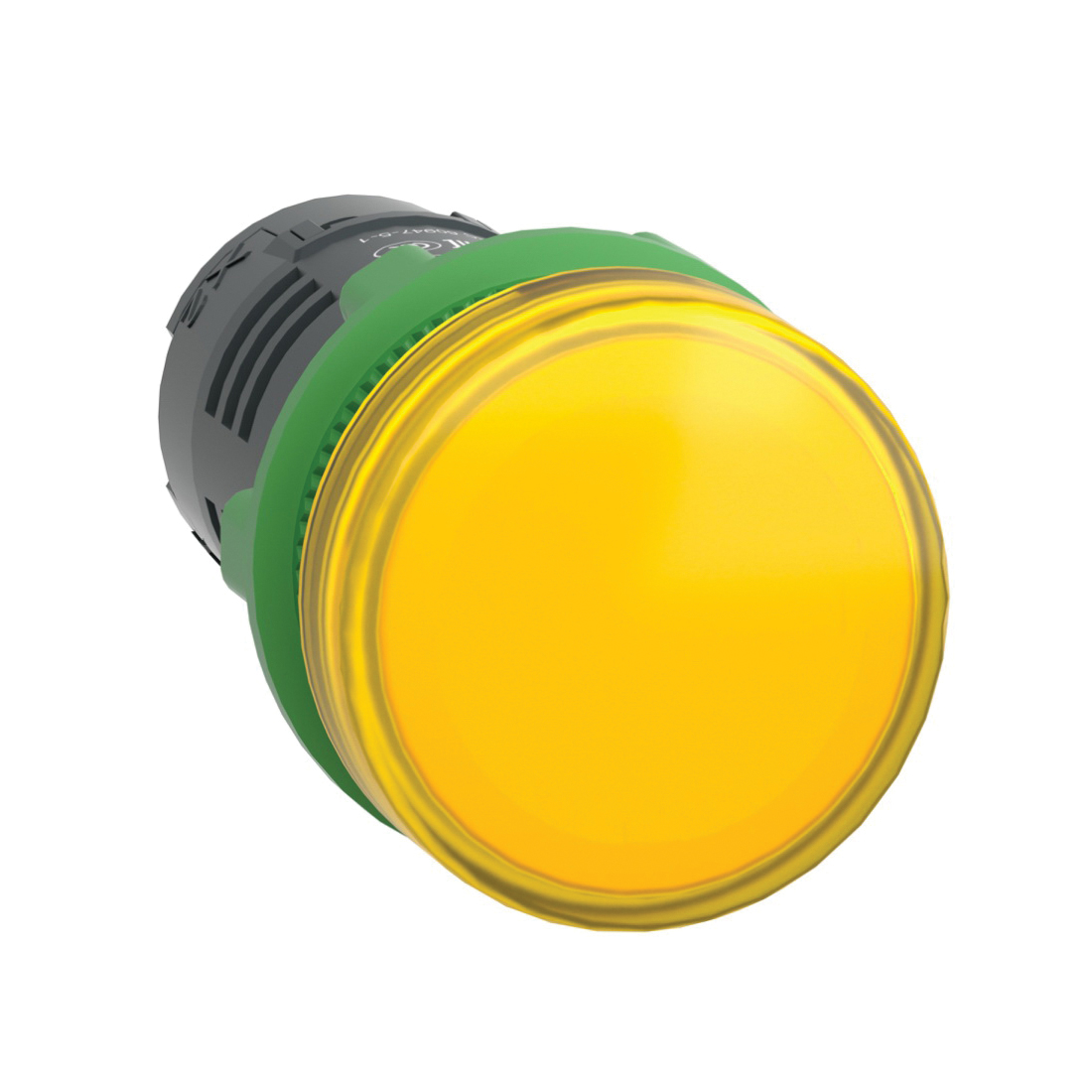

Square D XB5EVB8 24 V Pilot Light, 22 mm, 24 V, LED Lamp, Yellow Lens
Square D XB5EVB8 24 V Pilot Light, 22 mm, 24 V, LED Lamp, Yellow Lens
Square D XB5EVB8 24 V Pilot Light, 22 mm, 24 V, LED Lamp, Yellow Lens XB5EVB8 24 V- Brand Name: Square D
- Part Number: XB5EVB8 24 V
- Check Stock
Add To Favorites ListThis Harmony XB5, plain lens monolithic yellow pilot light is supplied with 24 VAC/VDC, uses a universal LED and screw clamp terminals. This single component pilot light provides clear visual feedback on the status of your machines. It is easily installed into standard 22 mm Dia cutouts and connected with simple screw clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via universal LED, enabling complex machine statuses to be read at a glance. It is impact-resistant, dust-resistant, water-resistant and vibration-resistant thanks to its IP66/IP67/IP69/IP69K, making it ideal for operation in harsh environments. Its plastic bezel makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation.
Square D Pilot Light, 22 mm Size, 24 V, LED Lamp, Plain Lens, Yellow Lens, Plastic Lens, Screw Clamp Terminal, -25 to 70 deg C, 29 mm H x 29 mm W x 54 mm
| Dimensions | : | 29 mm H x 29 mm W x 54 mm |
| Lamp Type | : | LED |
| Lens Color | : | Yellow |
| Lens Material | : | Plastic |
| Lens Type | : | Plain |
| Size | : | 22 mm |
| Temperature Rating | : | -25 to 70 deg C |
| Terminal Connection | : | Screw Clamp |
| Voltage Rating | : | 24 V |
- Compatible with universal LED block to be used for all colors
- Improved color intensity and brightness
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications (low current, standard)
- Environmental performance of the product
Instruction/Installation Manual
