TTP 67428 IDI_186711

Thermal Transfer 67428 Electronic Temperature Control

TTP 67428 Electronic Temperature Control, 1 to 30 deg F Differential, Thermistor Sensor, LED Display, NEMA 1 Enclosure

TTP 67428 Electronic Temperature Control, 1 to 30 deg F Differential, Thermistor Sensor, LED Display, NEMA 1 Enclosure 67428

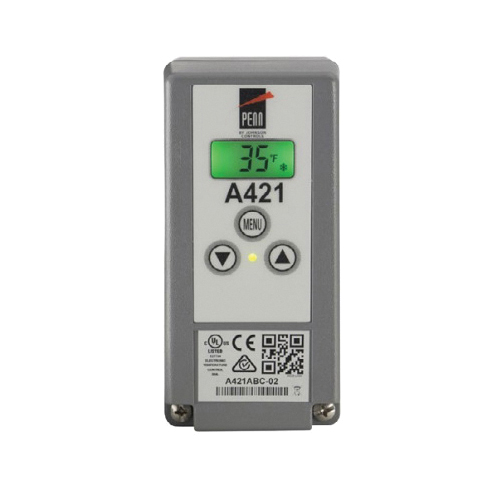

This is a line voltage single-stage electronic temperature control with single pole, double-throw relay output and LED indication. It is designed with heating or cooling modes of operation, adjustable differential and an interchangeable temperature sensor. The control couples electronic accuracy with remote sensing capability in a NEMA 1 high impact plastic enclosure suitable for surface or DIN-rail mounting.
TTP Electronic Temperature Control, -30 to 212 deg F Setpoint Range, 1 to 30 deg F Differential Temperature, Thermistor Sensor, LED Display, NEMA 1 Enclosure, DIN Rail, Surface Mounting, Plastic Housing, 5 in H x 2-3/8 in W x 2-3/8 in D

Differential Temperature      :      1 to 30 deg F
Dimensions      :      5 in H x 2-3/8 in W x 2-3/8 in D
Display Type      :      LED
Enclosure Type      :      NEMA 1
Housing Material      :      Plastic
Mounting Type      :      DIN Rail, Surface
Sensor Type      :      Thermistor
Setpoint Range      :      -30 to 212 deg F
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/TTP_67428_Specification_Sheet.pdf
