Timken® 206W 206W

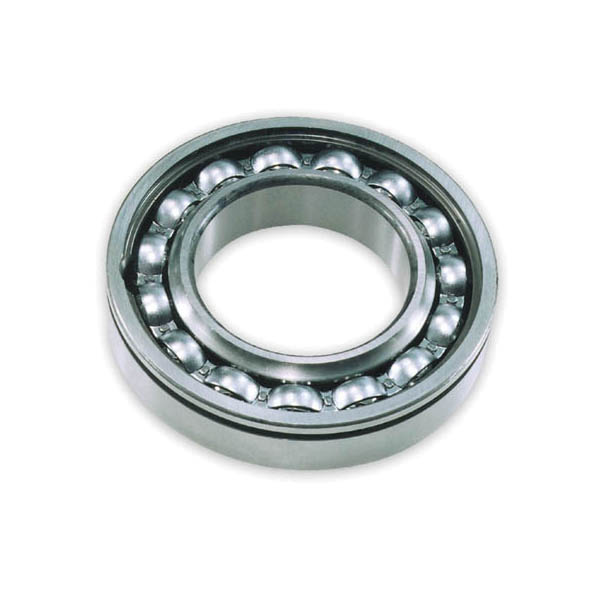

Timken 206W Deep Groove Radial Ball Bearing, 30 MM Diameter Bore, 62 MM OD, 0.629 Inch Width, Single Row

Timken® Light 200W Series 206W Deep Groove Ball Bearing, 30 mm Dia Bore, 62 mm OD, 0.629 in W, 1 -Row, Steel Bearing

Timken® Light 200W Series 206W Deep Groove Ball Bearing, 30 mm Dia Bore, 62 mm OD, 0.629 in W, 1 -Row, Steel Bearing 206W

Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation. In addition to standard single row deep groove bearings, Timken® offers special designs, including a maximum capacity series and an extra large (XLS) radial series bearing.
Timken® Deep Groove Ball Bearing, Series: Light 200W Series, 1 Rows, 30 MM Bore Diameter, 62 MM OD, 0.629 Inch Width, +0.0000 to -0.0004 Inch Tolerance, 15500 lbf Dynamic Load Capacity, 8550 lbf Static Load Capacity, Maximum Speed: 6522 rpm, Steel Bearing Material

Bearing Material      :      Steel
Bore Diameter      :      30 mm
Dynamic Load Capacity      :      15500 lbf
Maximum Speed      :      6522 rpm
Number of Rows      :      1
Outside Diameter      :      62 mm
Series      :      Light 200W Series
Static Load Capacity      :      8550 lbf
Tolerance      :      +0.0000 to -0.0004 in
Width      :      0.629 in
  • 200W Series, maximum capacity-type, is dimensionally interchangeable with the 200K-type, but has greater capacity for supporting heavier radial loads and light thrust loads in either direction
  • Maximum capacity bearings feature a filling slot in shoulder of each raceway to assemble an extra large complement of balls
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_200KDD_Catalog.pdf
  • pdfLine Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Timken_206W_Line_Drawing.pdf
