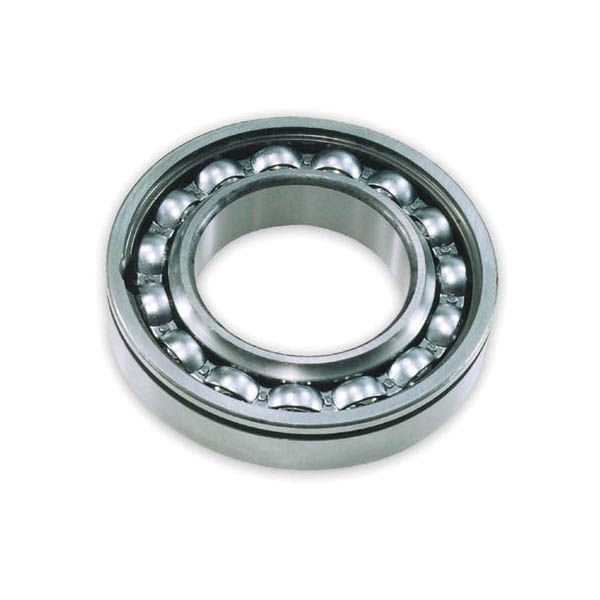

Timken 209WD Deep Groove Radial Ball Bearing, 45 MM Diameter Bore, 85 MM OD, 0.748 Inch Width, Single Row

Radial ball bearings consist of an inner and outer ring with a cage containing a complement of precision balls. The standard Conrad-type bearing has a deep groove construction capable of handling radial and axial loads from either direction in versatile designs that permit relatively high-speed operation. In addition to standard single row deep groove bearings, Timken® offers special designs, including a maximum capacity series and an extra large (XLS) radial series bearing.
Timken® Deep Groove Ball Bearing, Series: Light 200W Series, 1 Rows, Single Shielded Seal/Shield Type, 45 MM Bore Diameter, 85 MM OD, 0.748 Inch Width, +0.0000 to -0.00047 Inch Tolerance, 10900 lbf Dynamic Load Capacity, 7150 lbf Static Load Capacity, Maximum Speed: 4615 rpm, Steel Bearing Material

• 200W Series, maximum capacity-type, is dimensionally interchangeable with the 200K-type, but has greater capacity for supporting heavier radial loads and light thrust loads in either direction
• Maximum capacity bearings feature a filling slot in shoulder of each raceway to assemble an extra large complement of balls

• Catalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_200KDD_Catalog.pdf
• Line Drawing https://assets.unilogcorp.com/267/ITEM/DOC/Timken_209WD_Line_Drawing.pdf
