Timken® 67388-2 67388-2

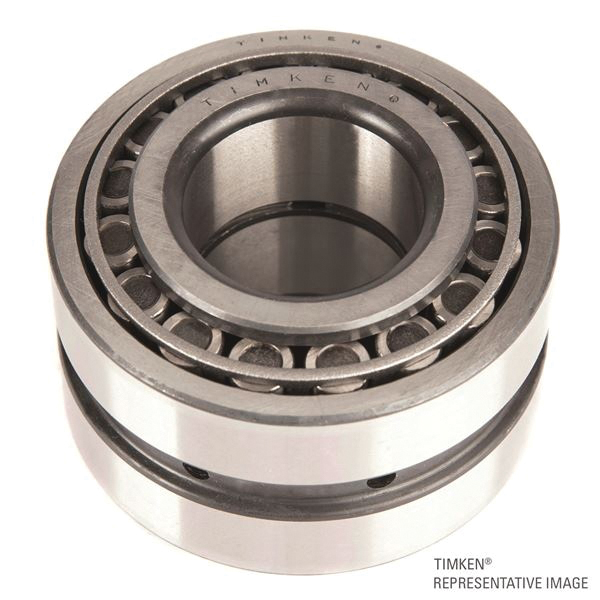

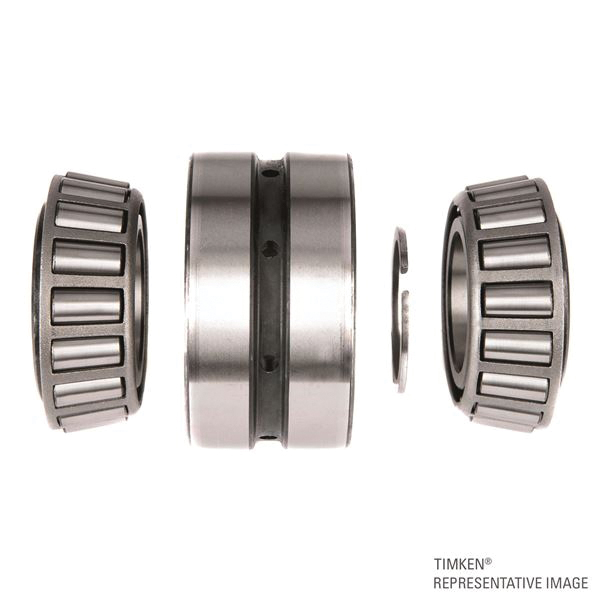

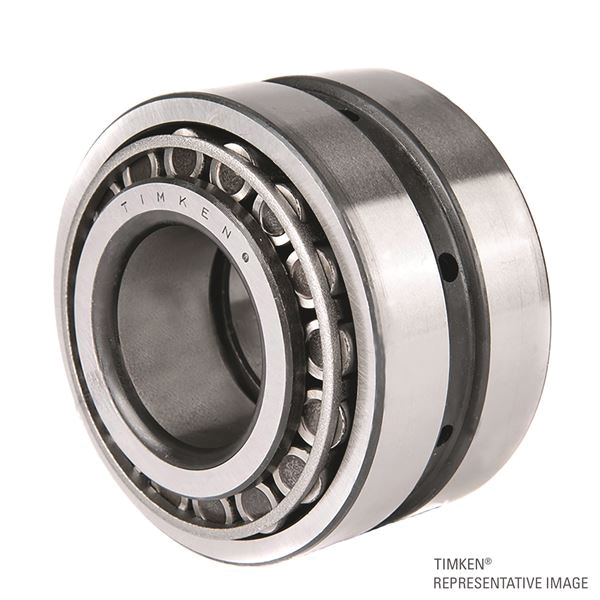

Timken 67388-2 Tapered Roller Bearing Cone, 5 Inch Diameter Bore, 4 Inch Width, Double Row

Timken® 67300 Series 67388-2 Tapered Roller Bearing Cone, 5 in Dia Bore, 2-Row, 4 in W Bearing

Timken® 67300 Series 67388-2 Tapered Roller Bearing Cone, 5 in Dia Bore, 2-Row, 4 in W Bearing 67388-2

The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Timken® Tapered Roller Bearing Cone, Series: 67300 Series, 5 Inch Bore Diameter, 4 Inch Bearing Width, 0.14 Inch Fillet Radius, 21400 lbf, 144000 lbf, 37300 lbf, 12600 lbf Load, 2 Rows, 0.14 in, 0.13 Inch Clearance, Steel Cage Material, 1-13/16 Inch Width

Bearing Width      :      4 in
Bore Diameter      :      5 in
Cage Material      :      Steel
Clearance      :      0.14 in, 0.13 in
Dimensions      :      1-13/16 in W
Fillet Radius      :      0.14 in
Load Capacity      :      21400 lbf, 144000 lbf, 37300 lbf, 12600 lbf
Number of Rows      :      2
Series      :      67300 Series
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_332_2_Catalog.pdf
