Timken L860048-2 Tapered Roller Bearing Cone, 13 Inch Diameter Bore, 16-3/8 Inch OD, 1-7/8 Inch Width, Double Row
Timken® L860000 Series L860048-2 Tapered Roller Bearing Cone, 13 in Dia Bore, 16-3/8 in OD, 2-Row, 1-7/8 in W Bearing
Timken® L860000 Series L860048-2 Tapered Roller Bearing Cone, 13 in Dia Bore, 16-3/8 in OD, 2-Row, 1-7/8 in W Bearing L860048-2- Brand Name: Timken®
- Part Number: L860048-2
- Check Stock

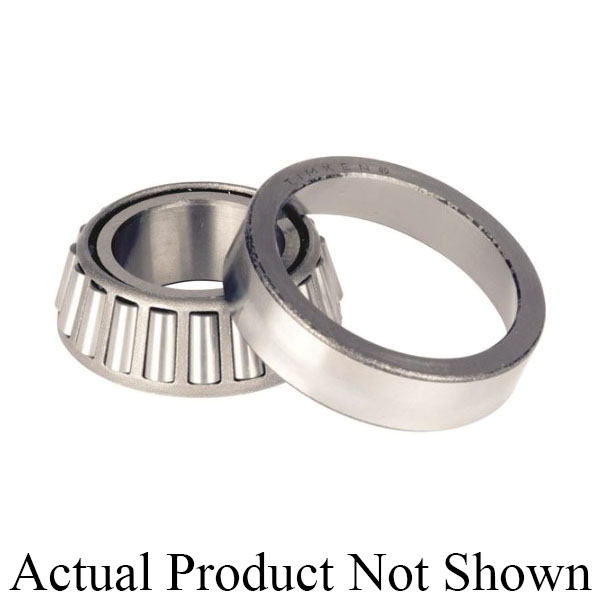

Add To Favorites ListThis is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts - the cone (inner ring) assembly and the cup (outer ring). It is typically mounted in opposing pairs on a shaft.
Timken® Tapered Roller Bearing Cone, Series: L860000 Series, 13 Inch Bore Diameter, 16-3/8 Inch OD, 1-7/8 Inch Bearing Width, 1/2 Inch Fillet Radius, 28300 lbf, 109000 lbf, 266000 lbf, 24100 lbf Load, 2 Rows, Light, 0.05 in, 1/4 Inch Clearance, Steel Cage Material, 1-7/8 Inch Width
| Bearing Width | : | 1-7/8 in |
| Bore Diameter | : | 13 in |
| Cage Material | : | Steel |
| Clearance | : | 0.05 in, 1/4 in |
| Dimensions | : | 1-7/8 in W |
| Duty Type | : | Light |
| Fillet Radius | : | 1/2 in |
| Load Capacity | : | 28300 lbf, 109000 lbf, 266000 lbf, 24100 lbf |
| Number of Rows | : | 2 |
| Outside Diameter | : | 16-3/8 in |
| Series | : | L860000 Series |
