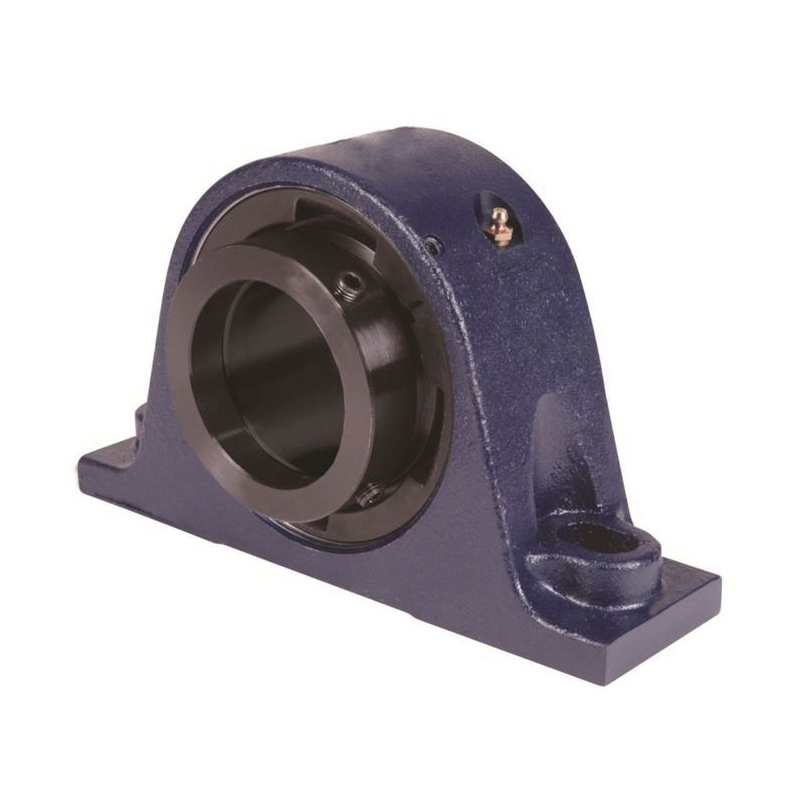

Timken® QMPL13J207SM QMPL13J207SM

Timken QMPL13J207SM 2-Bolt Pillow Block Bearing, 2-7/16 Inch Diameter Bore, 6.81 to 7.44 Inch Length Bolt Center-to-Center

Timken® EC Series QMPL13J207SM 2-Bolt Pillow Block Bearing, 2-7/16 in Dia Bore, 6.81 to 7.44 in L Bolt Center-to-Center

Timken® EC Series QMPL13J207SM 2-Bolt Pillow Block Bearing, 2-7/16 in Dia Bore, 6.81 to 7.44 in L Bolt Center-to-Center QMPL13J207SM

Timken® 2-Bolt Pillow Block Bearing, Series: EC Series, 2-7/16 Inch Bore Diameter, 2.9 Inch Base Width, 6.81 to 7.44 Inch Bolt Center-to-Center Length, 2-3/4 Inch Base to Bore Centerline, 5/8 Inch Bolt, 46400 lbf, 48600 lbf Load, 3200 rpm Maximum Speed, 0.0016 to 0.0026 Inch Clearance, Eccentric Locking Device, 9.25 Inch L x 3.58 Inch Width x 5.8 Inch H

Base Width      :      2.9 in
Base to Bore Centerline      :      2-3/4 in
Bolt Center-to-Center Length      :      6.81 to 7.44 in
Bolt Size      :      5/8 in
Bore Diameter      :      2-7/16 in
Clearance      :      0.0016 to 0.0026 in
Dimensions      :      9.25 in L x 3.58 in W x 5.8 in H
Load Capacity      :      46400 lbf, 48600 lbf
Locking Device      :      Eccentric
Maximum Speed Rating      :      3200 rpm
Series      :      EC Series
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_QMPL13J207SM_Catalog.pdf
