Timken® QMPL18J307SM QMPL18J307SM

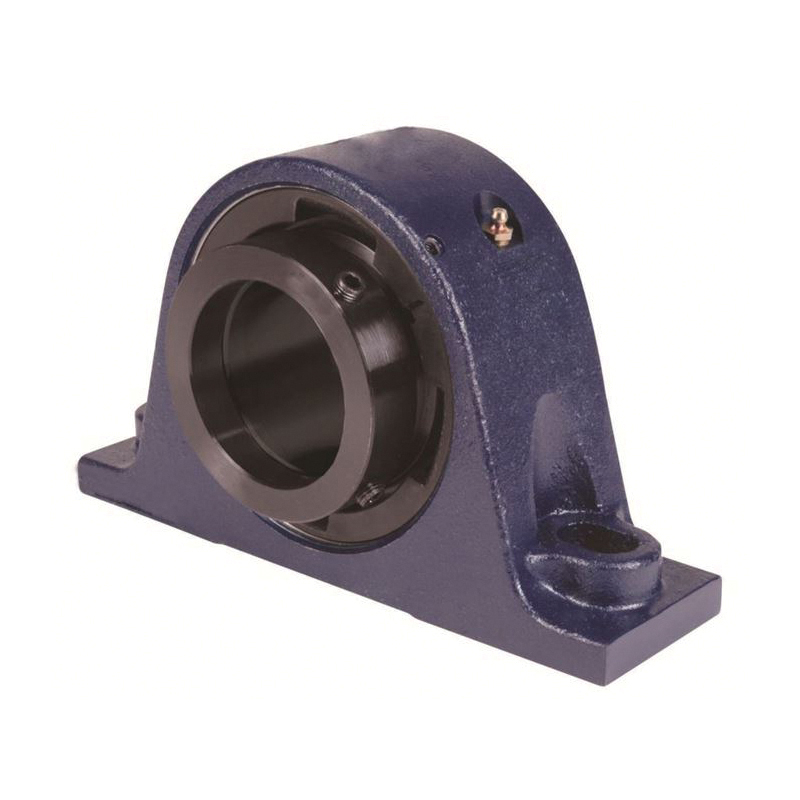

Timken QMPL18J307SM 2-Bolt Pillow Block Bearing, 3-7/16 Inch Diameter Bore, 3-3/4 Inch Base to Bore Centerline

Timken® EC Series QMPL18J307SM 2-Bolt Pillow Block Bearing, 3-7/16 in Dia Bore, 3-3/4 in Base to Bore Centerline

Timken® EC Series QMPL18J307SM 2-Bolt Pillow Block Bearing, 3-7/16 in Dia Bore, 3-3/4 in Base to Bore Centerline QMPL18J307SM

Timken® 2-Bolt Pillow Block Bearing, Series: EC Series, 3-7/16 Inch Bore Diameter, 3.41 Inch Base Width, 9-1/4 to 10-3/4 Inch Bolt Center-to-Center Length, 3-3/4 Inch Base to Bore Centerline, 7/8 Inch Bolt, 79700 lbf, 87200 lbf Load, 2400 rpm Maximum Speed, 0.0024 to 0.0039 Inch Clearance, Eccentric Locking Device, 13 Inch L x 4.3 Inch Width x 7.69 Inch H

Base Width      :      3.41 in
Base to Bore Centerline      :      3-3/4 in
Bolt Center-to-Center Length      :      9-1/4 to 10-3/4 in
Bolt Size      :      7/8 in
Bore Diameter      :      3-7/16 in
Clearance      :      0.0024 to 0.0039 in
Dimensions      :      13 in L x 4.3 in W x 7.69 in H
Load Capacity      :      79700 lbf, 87200 lbf
Locking Device      :      Eccentric
Maximum Speed Rating      :      2400 rpm
Series      :      EC Series
