Timken® R5V3550-5 R5V3550-5

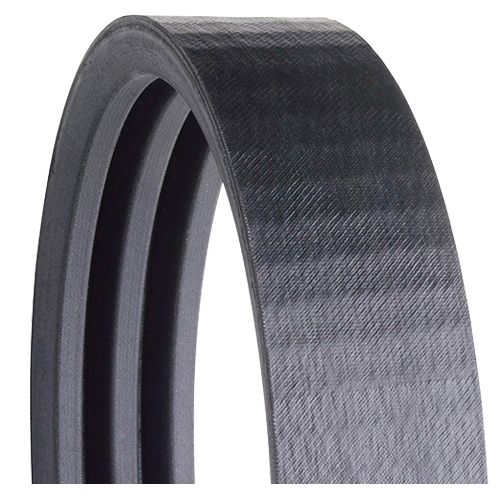

Timken R5V3550-5 Banded Belt, R5V Section, 356.1 Inch Length Outside, 5/8 Inch Width Top, Polyester

Timken® Super Power-Wedge® R5V3550-5 Banded Belt, R5V Section, 356.1 in L Outside, 5/8 in W Top, Polyester

Timken® Super Power-Wedge® R5V3550-5 Banded Belt, R5V Section, 356.1 in L Outside, 5/8 in W Top, Polyester R5V3550-5

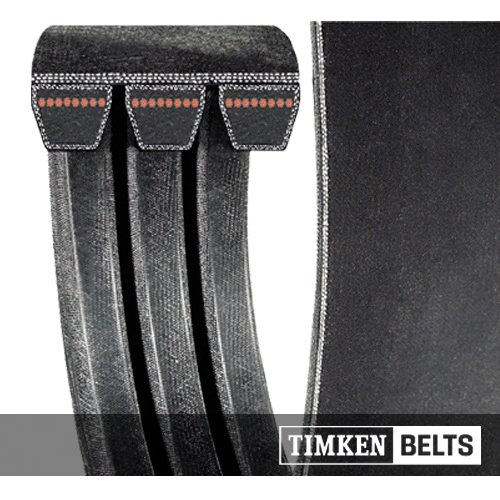

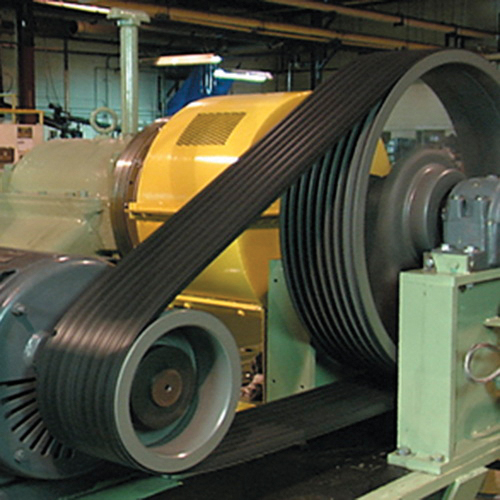

Super Power-Wedge® band is the banded version of the hard working Super Power-Wedge® V-belt. Super Power-Wedge® band is an excellent choice for virtually any application where increased horsepower capacity and output is needed or where conventional multiple belt drives are impractical because of space or weight limitations. The specially compounded wrapped construction is ideal for clutching operations. Banded V-belts are ideally suited for pulsating or heavily shock loaded drives and drives with extremely long center distances. Wedge band is oil and heat-resistant, static dissipating and it won't turn over or jump off the drive.
Timken® Super Power-Wedge® Banded Belt, R5V Section, 356.1 Inch Outside Length, 5/8 Inch Top Width, 17/32 Inch Pitch Length, 5 Number of Ribs, Wrapped Construction, Resists: Oil, Heat, Polyester, Domestic/Import: Domestic

Construction      :      Wrapped
Domestic/Import      :      Domestic
Material      :      Polyester
Number of Ribs      :      5
Outside Length      :      356.1 in
Pitch Length      :      17/32 in
Resists      :      Oil, Heat
Section Size      :      R5V
Top Width      :      5/8 in
  • Minimizes belt whip and rollover on long center distance drives
  • Smoother clutching
  • Space and weight saver
  • Oversized polyester cord provides added belt strength and stability
  • Cord is chemically treated for resistance to belt stretch
  • Tie band is highly engineered to permanently bond multiple belts together enabling the belts to function as a single unit with even load distribution and wear
  • Vibration is dampened
  • Heavy shock loads are absorbed
  • Made in the USA
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_R5V3550_5_Catalog.pdf
