Timken® R5VX1800-6 R5VX1800-6

Timken R5VX1800-6 V-Belt, 5V Section, 180.8 Inch Length Outside, 5/8 Inch Width Top, 17/32 Inch Thick

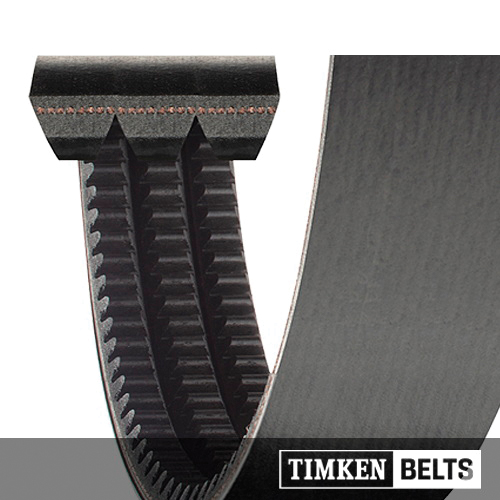

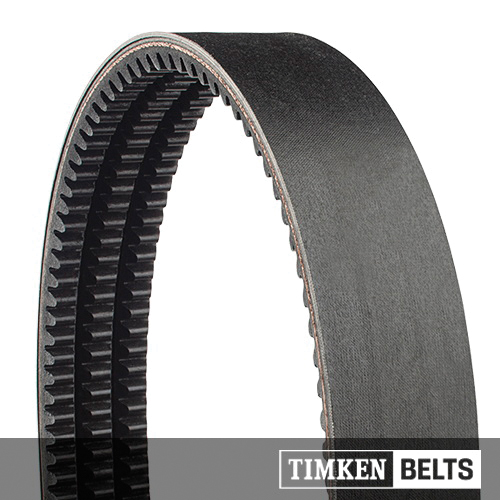

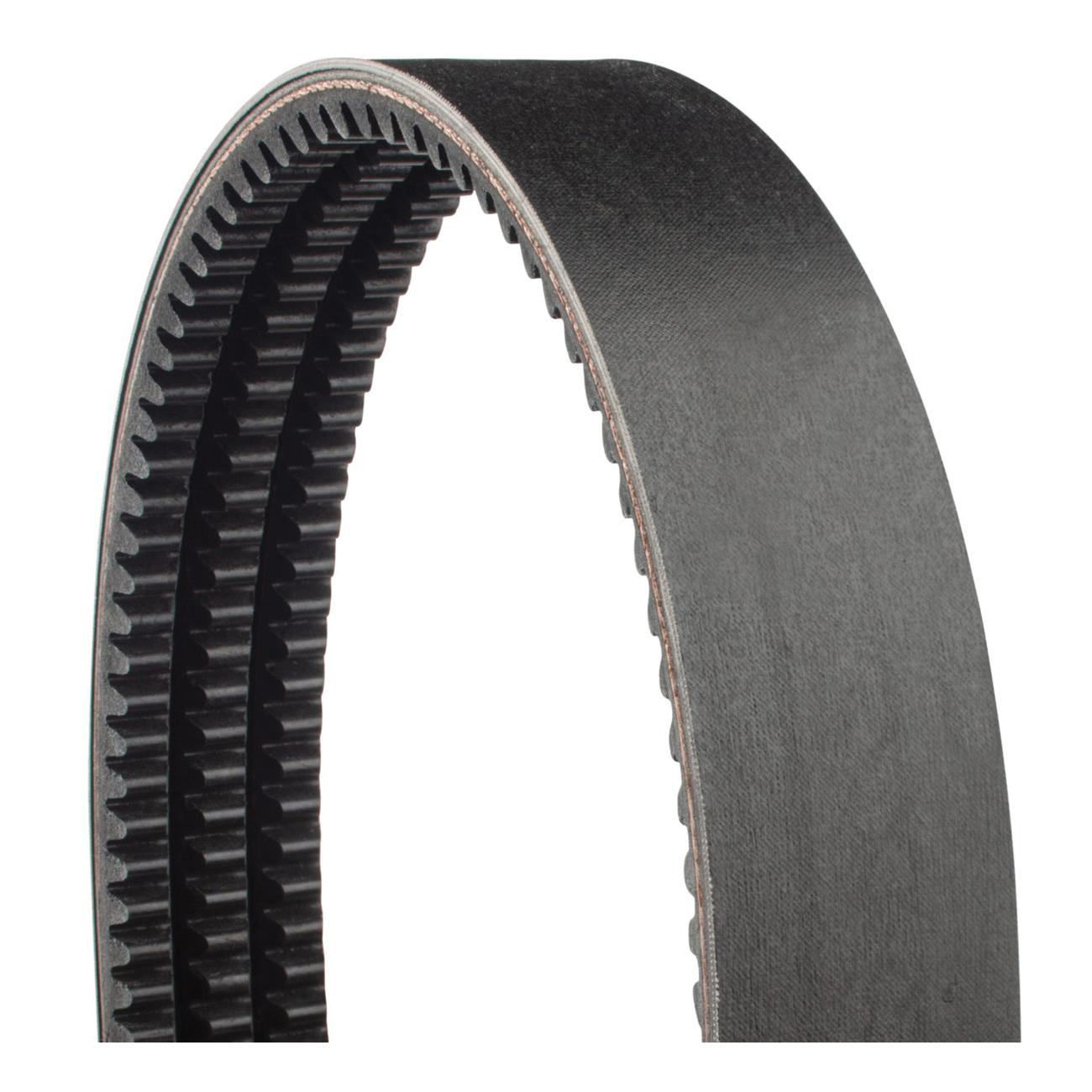

Timken® Power-Wedge® Cog-Band® R5VX1800-6 V-Belt, 5V Section, 180.8 in L Outside, 5/8 in W Top, 17/32 in Thick

Timken® Power-Wedge® Cog-Band® R5VX1800-6 V-Belt, 5V Section, 180.8 in L Outside, 5/8 in W Top, 17/32 in Thick R5VX1800-6

This is the banded version of the Power-Wedge Cog-Belt. The controlled grip of raw edge sidewalls and superior flexing are combined with the qualities of a banded belt. Designed to minimize belt whip and turnover on the drive, the Power-Wedge Cog-Band provides outstanding resistance to oil, heat and harsh environments. It's an ideal choice for applications where increased horsepower or speed is required or when unusually severe shock loads are encountered. The reinforced band across the top of two or more individual V-belts greatly enhances stability by preventing the belt from turning over or jumping off the drive.
Timken® Power-Wedge® Cog-Band® V-Belt, 5V Section, 180.8 Inch Length, 5/8 Inch Width Top, 17/32 Inch Thickness, Number of Ribs: 6, Banded, Cogged, Polyester Cord Reinforced, Resists: Heat, Harsh Environments, Oil, EPDM/Synthetic Rubber, -50 to 250 deg F, Domestic, For Use With Hi-Cap Wedge - QD, Taper Bushed or MST (5 V) Sheaves

Construction      :      Banded, Cogged
Domestic/Import      :      Domestic
Material      :      EPDM/Synthetic Rubber
Number of Ribs      :      6
Outside Length      :      180.8 in
Reinforced Material      :      Polyester Cord
Resists      :      Heat, Harsh Environments, Oil
Section Size      :      5V
Suitable For Use With      :      Hi-Cap Wedge - QD, Taper Bushed or MST (5 V) Sheaves
Temperature Rating      :      -50 to 250 deg F
Thickness      :      17/32 in
Top Width      :      5/8 in
  • Minimizes belt whip and rollover on long center distance drives
  • Precision molded cogs reduce bending stress and improves belt flex
  • Use on smaller pulley diameters to save space and cost
  • Superior flexibility dissipates heat providing longer belt life
  • Raw edge sidewalls produce a higher coefficient of friction reducing slippage
  • Improved performance and efficiency
  • Highly engineered tie-band permanently bonds or "ties" multiple belts together
  • Enables belts to function as a single unit with even load distribution and wear
  • Vibration is dampened
  • Heavy shock loads are absorbed
