Timken® RC96-5 RC96-5

Timken RC96-5 Banded V-Belt, C Section, 101.3 Inch Length Outside, 7/8 Inch Width Top

Timken® Super Blue Ribbon® RC96-5 Banded V-Belt, C Section, 101.3 in L Outside, 7/8 in W Top

Timken® Super Blue Ribbon® RC96-5 Banded V-Belt, C Section, 101.3 in L Outside, 7/8 in W Top RC96-5

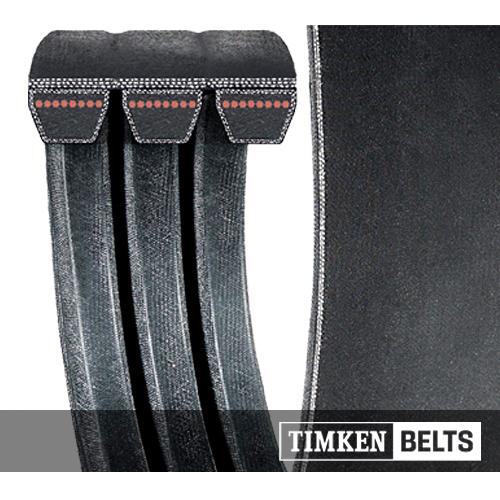

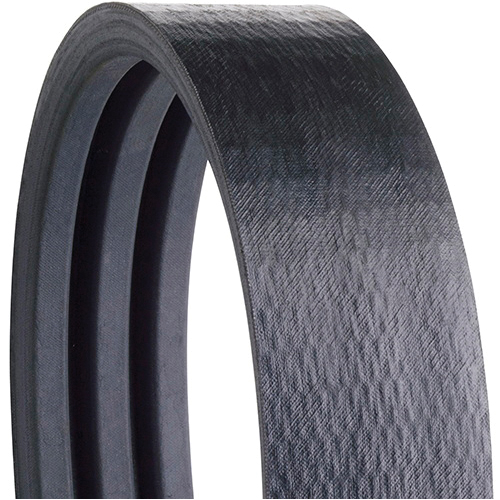

The Super Blue Ribbon® band belt is an ideal choice on classical drives where individual V-belts tend to roll over or whip severely on the drive due to fluctuating load conditions or harsh drive vibration. The individual ribs are permanently joined together at the top with a reinforced fabric tie band preventing the individual belts from coming off the drive.
Timken® Super Blue Ribbon® Banded V-Belt, C Section, 101.3 Inch Outside Length, 7/8 Inch Top Width, 9/16 Inch Pitch Length, 5 Number of Ribs, Resists: Oil, Heat, Domestic/Import: Domestic

Domestic/Import      :      Domestic
Number of Ribs      :      5
Outside Length      :      101.3 in
Pitch Length      :      9/16 in
Resists      :      Oil, Heat
Section Size      :      C
Top Width      :      7/8 in
  • Minimizes belt whip and rollover on long center distance drives
  • Tie band is highly engineered to permanently bond multiple belts together enabling the belts to function as a single unit with even load distribution and wear
  • Excellent oil and heat resistance, static dissipating
  • Vibration is dampened
  • Heavy shock loads are absorbed
  • Made in the USA
  • pdfCatalog https://assets.unilogcorp.com/267/ITEM/DOC/Timken_RC96_5_Catalog.pdf
  • pdfSpecification Sheet https://assets.unilogcorp.com/267/ITEM/DOC/Timken_RC96_5_Specification_Sheet.pdf
